Single Phase Screw Air Compressors Supplier
Single-phase 220V is suitable for a wide range of scenarios, wide voltage use, frequency conversion technology, small starting current, and residential electricity consumption, and the cost is about half of industrial electricity consumption. 220V frequency conversion motors are 50% more energy efficient than ordinary motors

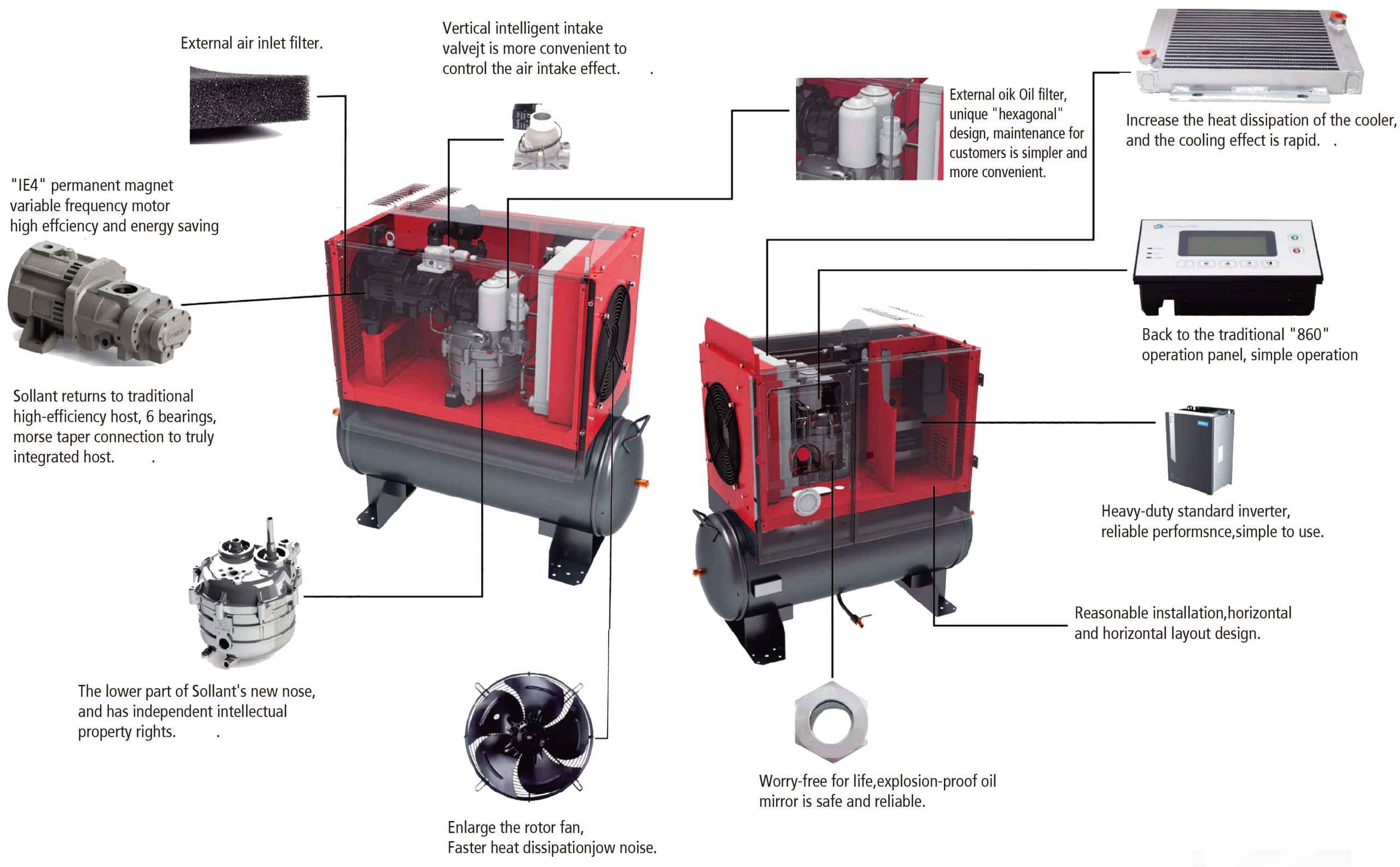

- Industry characteristic single-phase permanent magnet frequency conversion air compressor manufacturer
- Five-stage separation technology with independent intellectual property rights to ensure that the oil content of the export is controlled at 2ppm;

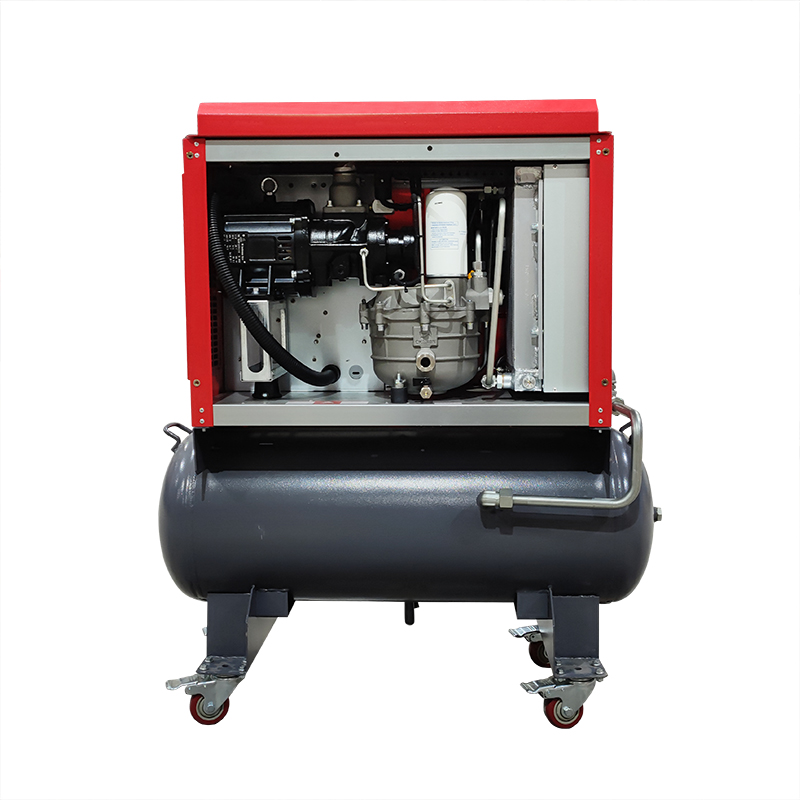

- Back to the original core, six heavy-duty bearings are used, connected by Morse taper, and the vibration frequency is controlled within 1mm/s;
- Efficiency up to 95%, “IE4” high energy efficiency motor;
- Constant pressure and silence;
- Large size air end, low speed, sufficient air volume.
- REDUCE ENERGY COSTS
Under various working conditions, the gas demand will fluctuate up and down. After a lot of research and calculation of market demand, SOLLANT has confirmed that there are significant differences in the demand for air volume of compressors under different circumstances. Only about 10% of applications require a constant air supply. Therefore, the inverter compressor can play a greater role in energy saving.
Energy costs often account for 70% of the life cycle cost of a compressor. Producing compressed air can account for as much as 40% of all electricity costs in a plant. In almost every plant, gas usage varies over time, with peaks and lows. SOLLANT permanent magnet variable frequency screw air compressor can supply air completely according to the air consumption requirement, which can save a lot of energy.
- EMULSION RESISTANCE
The compressor contains a set of accurate and reliable ATS (automatic constant temperature devices), which keeps the temperature of the lubricating oil in a constant range after the air compressor is started, so as to ensure that the exhaust temperature of the air compressor reaches above the dew point temperature of the compressed air, and avoids the precipitation of condensed water. Prevent oil emulsification.

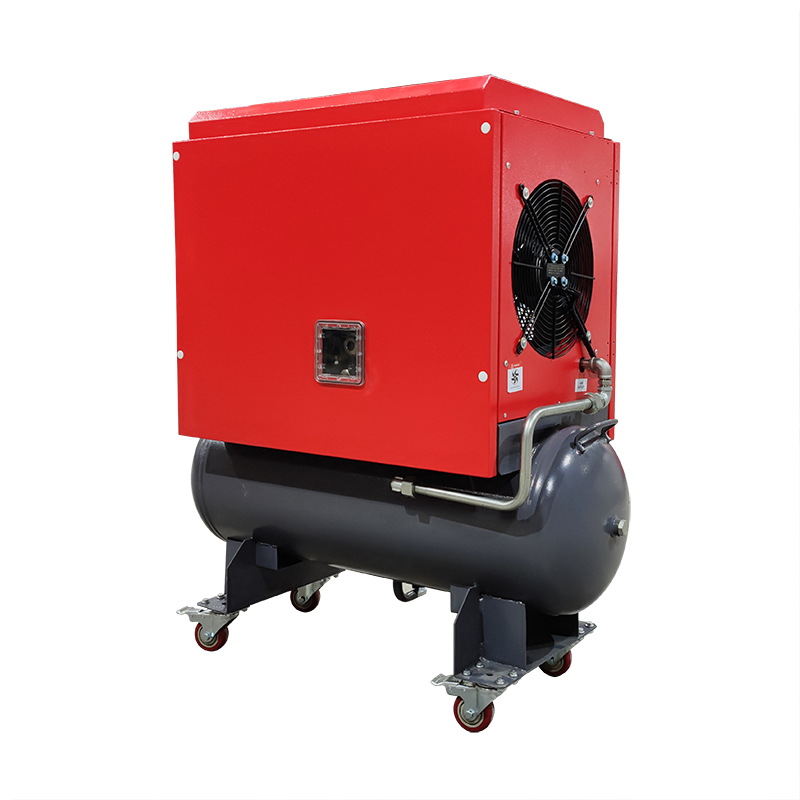

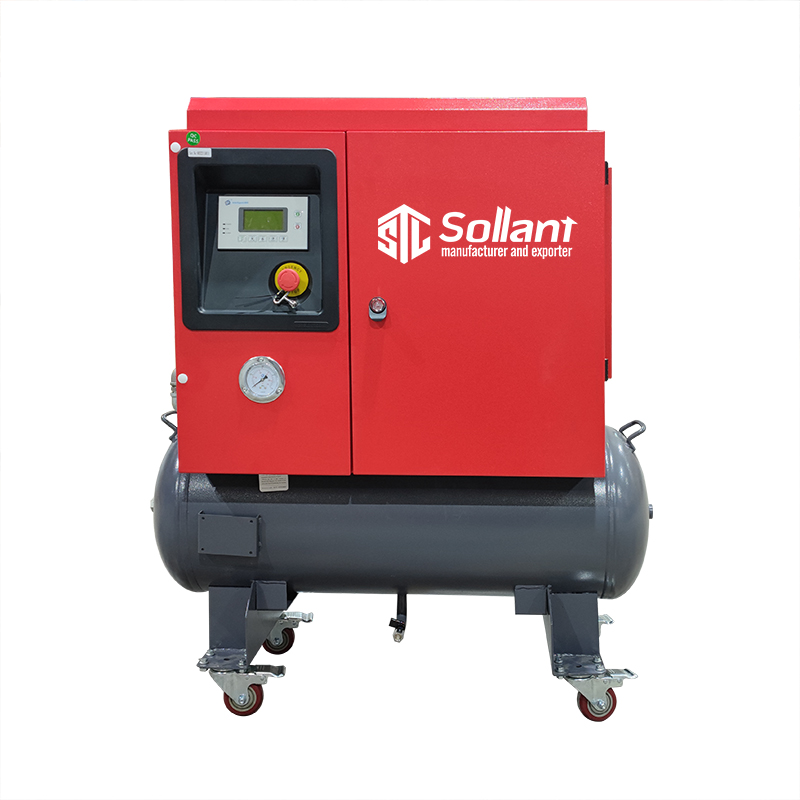

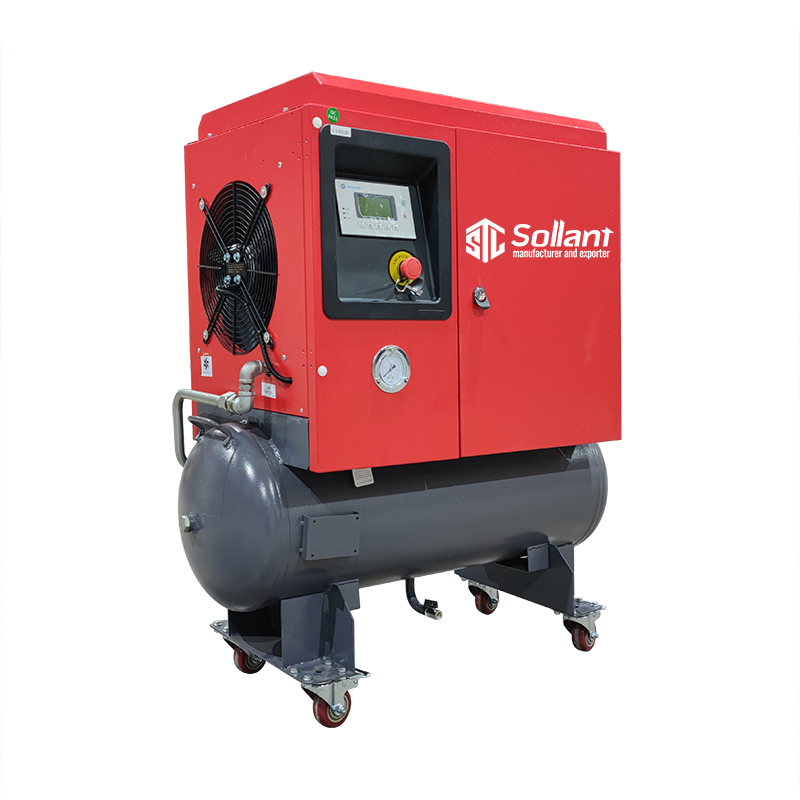

Permanent magnet variable frequency screw air compressor (220V/380V)
Model | Power (kw) | Horsepower | Voltage | Pressure | Displacement ( L/min) | Air Tank( L) | Dimensions(mm) | Outlet Dimension |
---|---|---|---|---|---|---|---|---|
SLTS-3.7V | 3.7 | 5 | 220/380 | 8 | 200-400 | 100 | 1020*540*1035 | G1/2 |
10 | 175-350 | |||||||
12.5 | 150-300 | |||||||
SLTS-4.5V | 4.5 | 6 | 220/380 | 8 | 250-500 | 100 | 1020*540*1035 | |
10 | 210-420 | |||||||
12.5 | 180-360 | |||||||
SLTS-5.5V | 5.5 | 7 | 220/380 | 8 | 315-630 | 100 | 1020*540*1035 | |
10 | 275-550 | |||||||
12.5 | 210-420 | |||||||
SLTS-7.5V | 7.5 | 10 | 220/380 | 8 | 490-980 | 160 | 1060*560*1270 | |
10 | 450-900 | |||||||
12.5 | 400-800 | |||||||
SLTS-9.0V | 9.0 | 12 | 220/380 | 8 | 600-1200 | 200 | 1300*580*1375 | |
10 | 540-1080 | |||||||
12.5 | 460-920 |
Single-Phase Fixed Speed Screw Air Compressor Specification
Model | Power(kw) | Displacement (m³/min) | Exhaust pressure (MPa) | Noise dB (A) | Dimensions(mm) | Weight(KG) | Exhaust port | Air tank |
---|---|---|---|---|---|---|---|---|
SLTS-3F | 2.2 | 0.34 | 0.8 | 55 | 640*400*640 | 76 | RC1/2 | 150L |
SLTS-3FS(220V) | 2.2 | 0.34 | 0.8 | 55 | 640*400*640 | 79 | RC1/2 | 150L |
SLTS-6F | 4.5 | 0.65 | 0.8 | 60 | 720*430*670 | 105 | RC1/2 | 150/220L |
SLTS-7F(220V) | 5.5 | 0.8 | 0.8 | 62 | 720*430*670 | 110 | RC1/2 | 150/220L |
SLTS-10F | 7.5 | 1.05 | 0.8 | 65 | 820*560*810 | 170 | RC3/4 | 290L |
SLTS-0413F | 3.0 | 0.34 | 1.25 | 57 | 640*400*640 | 76 | RC1/2 | 150L |
SLTS-0413FS( 220V) | 3.0 | 0.3 | 1.25 | 57 | 640*400*640 | 79 | RC1/2 | 150L |
SLT-613F | 4.5 | 0.6 | 1.25 | 61 | 720*430*670 | 105 | RC1/2 | 150/220L |
SLTS-7FS13 (220V) | 5.5 | 0.66 | 1.25 | 62 | 720*430*670 | 105 | RC1/2 | 150/220L |
SLTS-1013F | 7.5 | 0.95 | 1.25 | 66 | 820*560*810 | 170 | RC3/4 | 290L |
SLTS-0616F | 4.5 | 0.34 | 1.6 | 65 | 720*430*670 | 90 | RC3/4 | |
SLTS-1016F | 7.5 | 0.65 | 1.6 | 66 | 820*560*810 | 155 | RC3/4 | |
SLTS-1516F | 11.0 | 1.05 | 1.6 | 68 | 820*560*810 | 190 | RC3/4 | |
SLTS-06F | 4.5 | 0.65 | 0.8 | 66 | 1320*600*1390 | 225 | RC1/2 | 290L/420L |
SLTS-10F | 7.5 | 1.05 | 0.8 | 68 | 1320*600*1530 | 290 | RC1/2 | 290L/420L |
