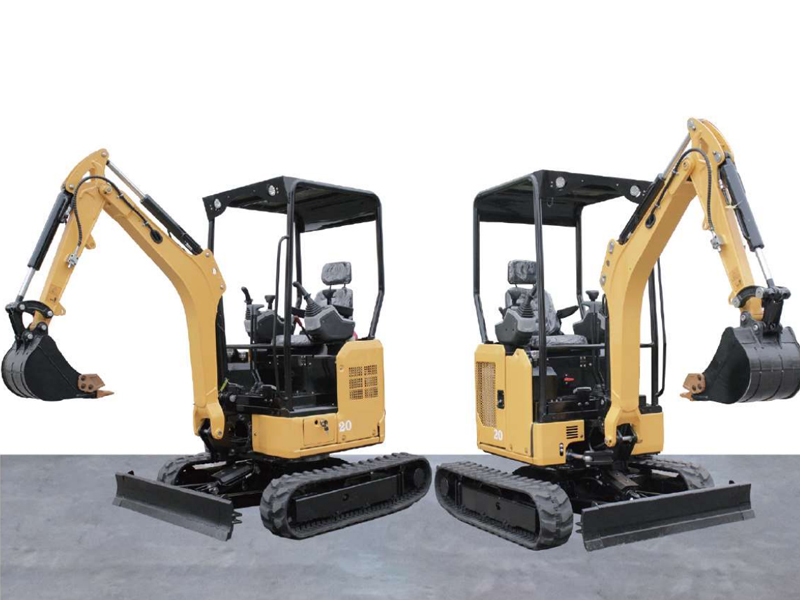

DV20 Compact Excavator
Technical Parameters
| Stand dipper capacity. | 0.035m³ | Engine: | Yanmar3TNV80F |
| Chassis Width: | 1100-1400mm | Engine Power: | 15.2KW |
| Track Grounding Length: | 1500mm | EuroV/EPA engine optional: | Yanmar3TNV80F |
| Max.gradeability Degree: | 40⁰ | Max.digging Height: | 3016mm |
| Chassis Ground Clearance: | 385mm | Max.dumping height: | 2133mm |
| Track Width : | 230mm | Max.Digging Depth: | 2050mm |
| Fuel Tank Capacity: | 16L | Max.digging radius: | 3800mm |
| Overall Dimension: | 3550*1100/1400*2203mm | Rotation radius: | 1645mm |
| Length During Transportation: | 3550mm | Digging force: | 16KN |
| Excavator Height: | 2203mm | Overall weight: | 2000KG |
| Hydraulic Flow Rate: | 40L/min | Configuration: | ltalian imported multi way valve. |
| Hydraulic Oil Tank Capacity: | 16L | Hydraulic pump imported from South Korea | |
| Working Pressure. | 16Mpa | Load sensitive system of plunger pump |
