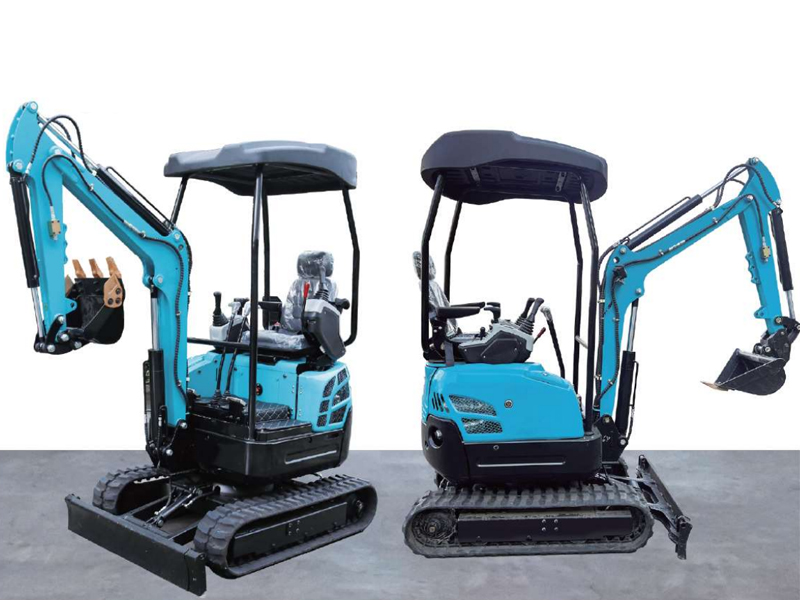

DV18PLUS Compact Excavator

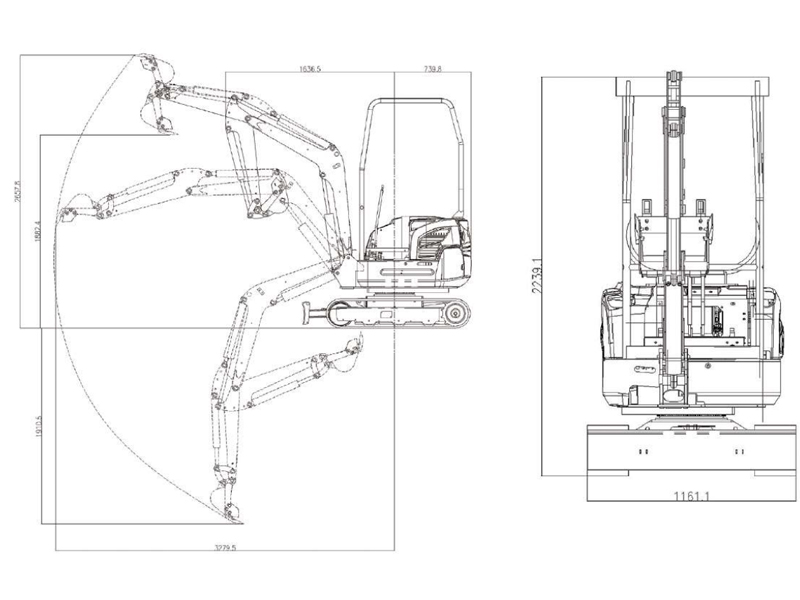

Technical Parameters
| Stand dipper capacity. | 0.025m³ | Engine: | Kubota D772/D902 |
| Chassis Width: | 1160mm | Engine Power: | 10.3 horsepower |
| Track Grounding Length: | 1300mm | EuroV/EPA engine optional: | Kubota D772 |
| Max.gradeability Degree: | 40⁰ | Max.digging Height: | 2740mm |
| Chassis Ground Clearance: | 385mm | Max.dumping height: | 1900mm |
| Track Width : | 230mm | Max.Digging Depth: | 1910mm |
| Fuel Tank Capacity: | 15L | Max.digging radius: | 3280mm |
| Overall Dimension: | 2200*1160*2200mm | Rotation radius: | 1636mm |
| Length During Transportation: | 2200mm | Digging force: | 15KN |
| Excavator Height: | 2200mm | Overall weight: | 1700KG |
| Hydraulic Flow Rate: | 40L/min | Configuration: | ltalian imported multi way valve. |
| Hydraulic Oil Tank Capacity: | 16L | Hydraulic pump imported from South Korea | |
| Working Pressure. | 16Mpa | Dual Pump Load Sensitive System |
