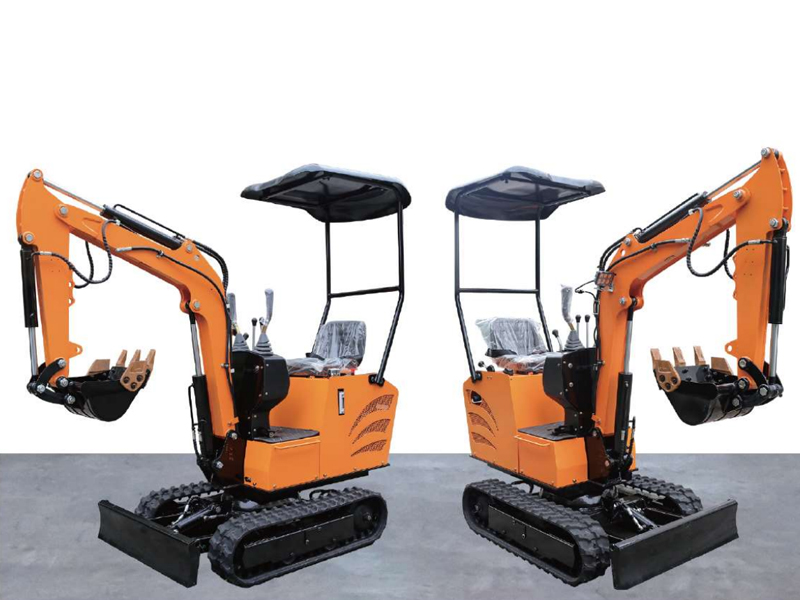

DV10-A Compact Excavator
Technical Parameters
| Stand dipper capacity. | 0.025m³ | Engine: | Briggs & Stratton koop192 |
| Chassis Width: | 930mm | Engine Power: | 13 horsepower |
| Track Grounding Length: | 1150mm | EuroV/EPA engine optional: | riggs & Stratton koop192 |

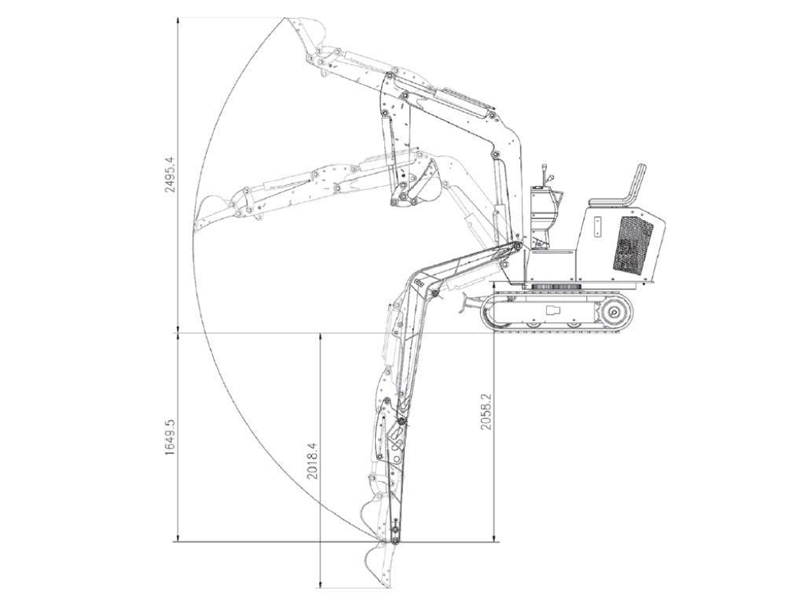

| Max.gradeability Degree: | 40⁰ | Max.digging Height: | 2500mm |
| Chassis Ground Clearance: | 385mm | Max.dumping height: | 1600mm |
| Track Width : | 180mm | Max.Digging Depth: | 1540mm |
| Fuel Tank Capacity: | 3.5L | Max.digging radius: | 2400mm |
| Overall Dimension: | 2170*930*2200mm | Rotation radius: | 1190mm |
| Length During Transportation: | 2550mm | Digging force: | 11KN |
| Excavator Height: | 2200mm | Overall weight: | 800KG |
| Hydraulic Flow Rate: | 40L/min | Configuration: | Northern Multi Way Valve |
| Hydraulic Oil Tank Capacity: | 16L | Traveling Hydraulic Pump | |
| Working Pressure. | 16Mpa | Dual Pump Load Sensitive System |
