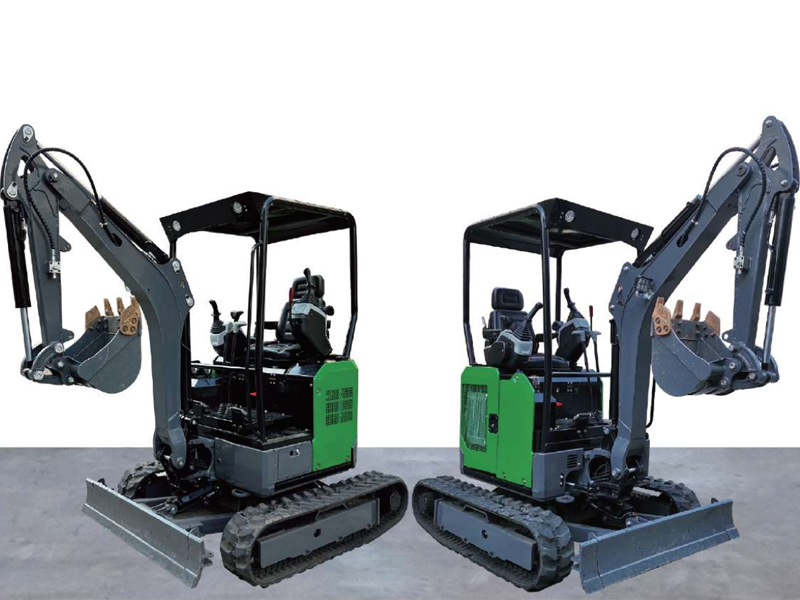

DE20 Compact Excavator
Technical Parameters
| Stand dipper capacity. | 0.035m³ | Battery Type: | Lithium lron Phosphate Battery |
| Chassis Width: | 1100-1400mm | Electromotor power: | 6kw |
| Track Grounding Length: | 1500mm | Hourly power consumption: | One kilowatt-hour |
| Max.gradeability Degree: | 40⁰ | Max.digging Height: | 3016mm |
| Chassis Ground Clearance: | 385mm | Max.dumping height: | 2133mm |
| Track Width : | 230mm | Max.Digging Depth: | 2050mm |
| Overall Dimension: | 3550*1100/1400*2203mm | Max.digging radius: | 3800mm |
| Length During Transportation: | 3550mm | Rotation radius: | 1645mm |
| Excavator Height: | 2203mm | Digging force: | 16KN |
| Battery capacity: | 200HA | Overall weight: | 2000KG |
| Battery voltage: | 72V | Configuration: | ltalian imported multi way valve. |
| Theoretical charging time: | 8H/4H/1H | Hydraulic pump imported from South Korea | |
| Noise within one meter: | <55 | Load sensitive system of plunger pump |
