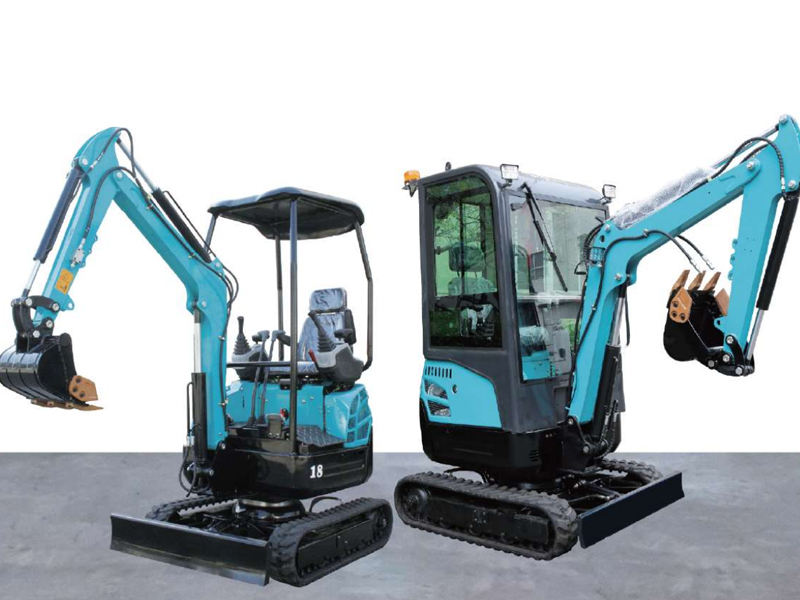

DE18 Compact Excavator
Technical Parameters
| Stand dipper capacity. | 0.025m³ | Battery Type: | Lithium lron Phosphate Battery |
| Chassis Width: | 1100mm | Electromotor power: | 6kw |
| Track Grounding Length: | 1300mm | Hourly power consumption: | One kilowatt-hour |

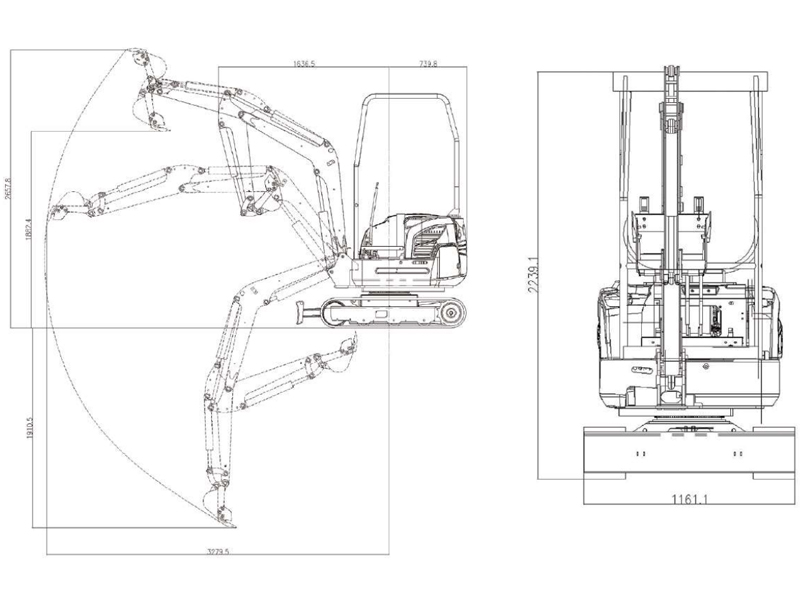

| Max.gradeability Degree: | 40⁰ | Max.digging Height: | 2700mm |
| Chassis Ground Clearance: | 385mm | Max.dumping height: | 1900mm |
| Track Width : | 180mm | Max.Digging Depth: | 1910mm |
| Overall Dimension: | 2200*1100*2200mm | Max.digging radius: | 3280mm |
| Length During Transportation: | 2200mm | Rotation radius: | 1636mm |
| Excavator Height: | 2200mm | Digging force: | 15KN |
| Battery capacity: | 200HA | Overall weight: | 1500KG |
| Battery voltage: | 72V | Configuration: | ltalian imported multi way valve. |
| Theoretical charging time: | 8H/4H/1H | Hydraulic pump imported from South Korea | |
| Noise within one meter: | <55 | Dual pump load sensitive system |
