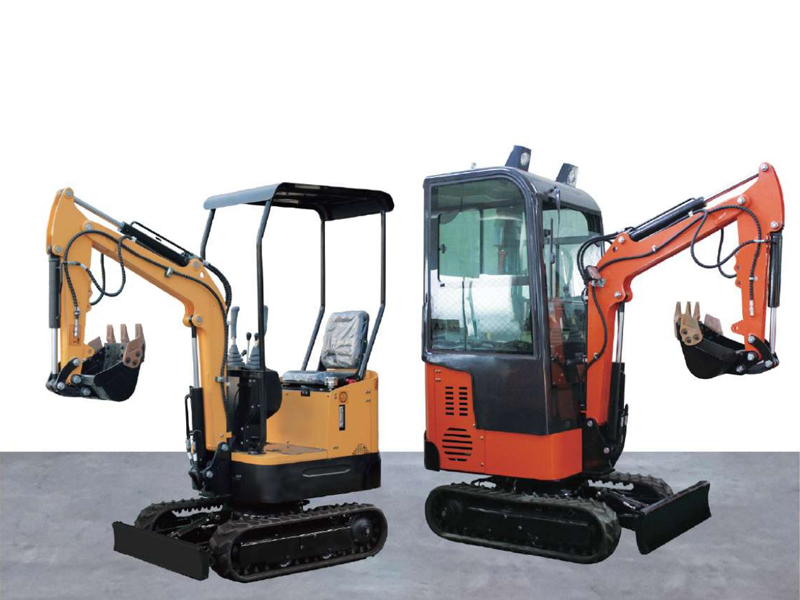

DE12 Compact Excavator

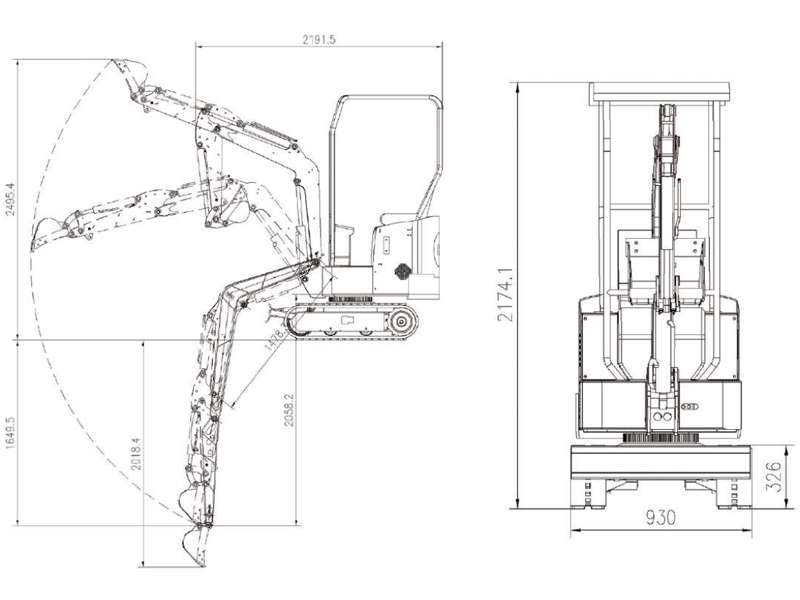

Technical Parameters
| Stand dipper capacity. | 0.025m³ | Battery Type: | Lithium lron Phosphate Battery |
| Chassis Width: | 930mm | Electromotor power: | 6kw |
| Track Grounding Length: | 1250mm | Hourly power consumption: | One kilowatt-hour |
| Max.gradeability Degree: | 40⁰ | Max.digging Height: | 2550mm |
| Chassis Ground Clearance: | 385mm | Max.dumping height: | 1600mm |
| Track Width : | 180mm | Max.Digging Depth: | 1650mm |
| Overall Dimension: | 2000*930*2200mm | Max.digging radius: | 2400mm |
| Length During Transportation: | 2200mm | Rotation radius: | 1190mm |
| Excavator Height: | 2200mm | Digging force: | 11KN |
| Battery capacity: | 126HA | Overall weight: | 950KG |
| Battery voltage: | 72V | Configuration: | ltalian imported multi way valve. |
| Theoretical charging time: | 8H/4H/1H | Traveling hydraulic pump | |
| Noise within one meter: | <55 | Double gear pump |
