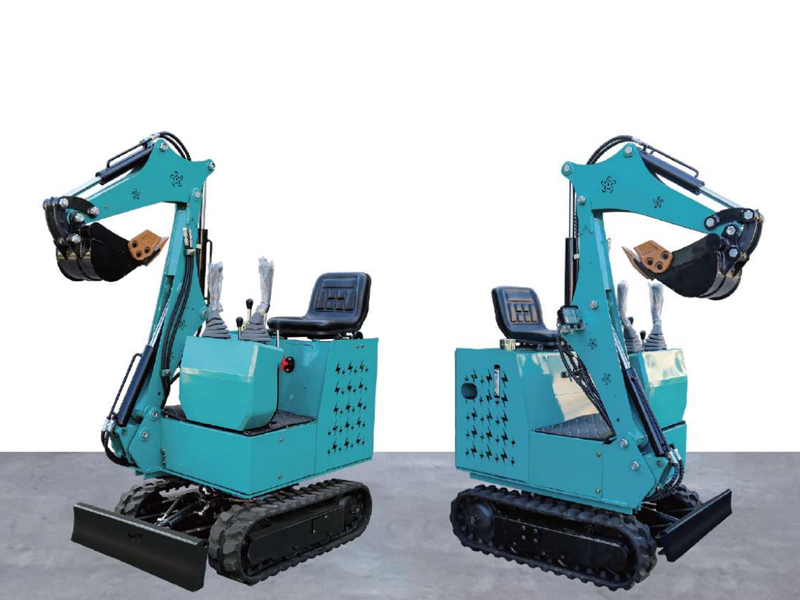

DE08 Compact Excavator
Technical Parameters
| Stand dipper capacity. | 0.02m³ | Battery Type: | Lithium lron Phosphate Battery |
| Chassis Width: | 730mm | Electromotor power: | 6kw |
| Track Grounding Length: | 1100mm | Hourly power consumption: | One kilowatt-hour |

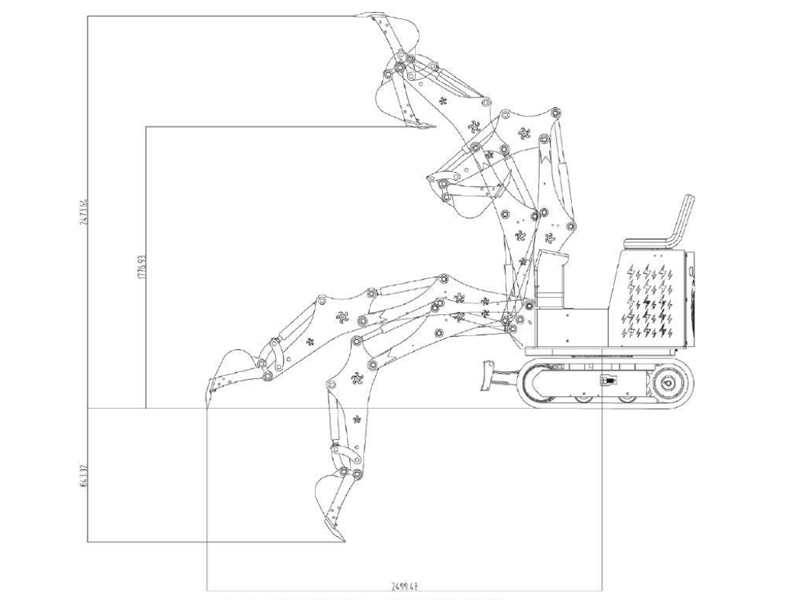

| Max.gradeability Degree: | 40⁰ | Max.digging Height: | 2500mm |
| Chassis Ground Clearance: | 380mm | Max.dumping height: | 1780mm |
| Track Width : | 150mm | Max.Digging Depth: | 840mm |
| Overall Dimension: | 2000*730*1880mm | Max.digging radius: | 2500mm |
| Length During Transportation: | 2200mm | Rotation radius: | 1100mm |
| Excavator Height: | 1880mm | Digging force: | 11KN |
| Battery capacity: | 72V | Overall weight: | 750KG |
| Battery voltage: | 126AH | Configuration: | ltalian imported multi way valve. |
| Theoretical charging time: | 8H/4H/1H | Traveling hydraulic pump | |
| Noise within one meter: | <55 | Dual pump load sensitive system |
