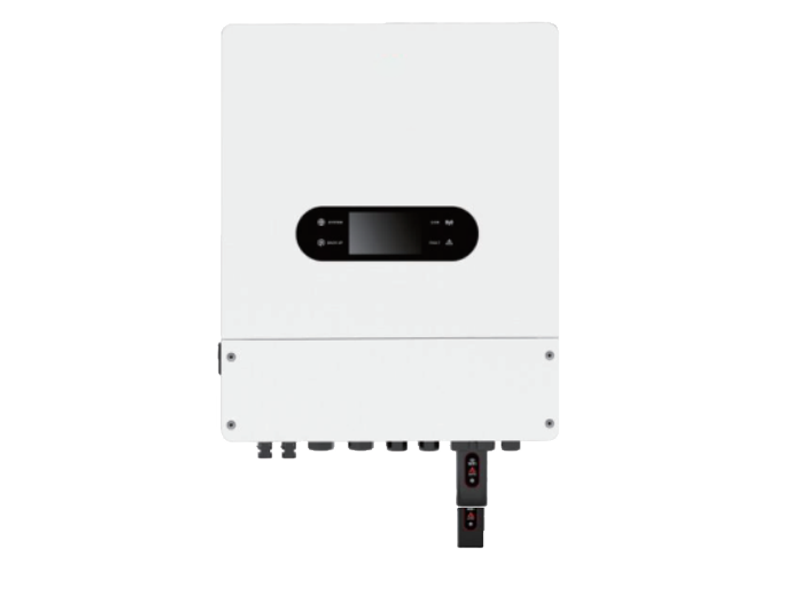

AEP-3KS/3K6S/4KS/4K6S/5KS/6KS48P
| Model Name | AEP-3KS48P | AEP-3K6S48P | AEP-4KS48P | AEP-4K6S48P | AEP-5KS48P | AEP-6KS48P |
|---|---|---|---|---|---|---|
| Battery input data | ||||||
| Battery Type | Lithium or lead acid battery | |||||
| Rated Battery voltage (V) | 48 | |||||
| Maximum charging voltage (V) | ≤60(Configurable) | |||||
| Maximum charge/discharge current (V) | 75 | 90 | 100 | 110 | 120 | 120 |
| PV input data | ||||||
| Maximum DC input power(kw) | 3.9 | 4.7 | 5.2 | 6 | 6.5 | 7.5 |
| Maximum DC input voltage(V) | 500 | |||||
| MPPT Operating voltage range(V) | 150-450 | |||||
| Starting voltage (V) | 125 | |||||
| Maximum input current (A) | 18 | 18/18 | 18/18 | 18/18 | 18/18 | 18/18 |
| MPPT number | 1 | 2 | 2 | 2 | 2 | 2 |
| AC output parameters (On-Grid) | ||||||
| Maximum output apparent power(KW) | 3300 | 3960 | 4400 | 5000 | 5500 | 6000 |
| Rated output voltage (V) | 230 | |||||
| Rated output frequency (Hz) | 50/60Hz | |||||
| Max output current (A) | 15 | 18 | 20 | 22 | 25 | 27 |
| Output power factor | ~1(-0.8 leading ~ +0.8 lagging) | |||||
| AC output parameters (Off-Grid) | ||||||
| Maximum output apparent power(KW) | 3000 | 3600 | 4000 | 4600 | 5000 | 6000 |
| Rated output voltage (V) | 6000,15sec | 7200,15sec | 8000,15sec | 9200,15sec | 10000,15sec | 10000,15sec |
| Rated output frequency (Hz) | 230(±2%) | |||||
| Max output current (A) | 50/60(±0.2%) | |||||
| Output power factor | 14 | 15 | 18 | 21 | 23 | 27 |
| Efficiency | ||||||
| Max efficiency (PV) | 97.6% | |||||
| Max efficiency (cell) | 94.5% | |||||
| Europe efficiency | 97% | |||||
| Protection | ||||||
| PV input reverse polarity protection | Yes | |||||
| PV insulation resistance detection | Yes | |||||
| Residual curent detection | Yes | |||||
| Output over current protection | Yes | |||||
| Output short circuit protection | Yes | |||||
| Output over voltage protection | Yes | |||||
| Basic data | ||||||
| Operation temperature (°C) | ―25~60 | |||||
| Storage temperature (°C) | ―30~65 | |||||
| Relative humidity | 0~95% | |||||
| Working altitude (m) | ≤4000 | |||||
| Cooling | Air cooling | |||||
| Noise (db) | <55 | |||||
| Weight (kg) | 20 | |||||
| Size (width x height x depth)(mm) | 427*554*198 | |||||
| Protection class | IP66 | |||||
| Topology | HF isolation (Battery side) | |||||
AEP-8 /10 /12KS48P3
| Model Name | AEP-8KS48P3 | AEP-10KS48P3 | AEP-12KS48P3 |
|---|---|---|---|
| Battery input data | |||
| Battery Type | Lithium or lead acid battery | ||
| Rated Battery voltage (V) | 48 | ||
| Maximum charging voltage (V) | ≤60(Configurable) | ||
| Maximum charge/discharge current (V) | 190 | 210 | 250 |
| PV input data | |||
| Maximum DC input power(kw) | 16 | 20 | 24 |
| Maximum DC input voltage(V) | 100 | ||
| MPPT Operating voltage range(V) | 200-800 | ||
| Starting voltage (V) | 150 | ||
| Maximum input current (A) | 18/18 | 36/18 | 36/18 |
| MPPT number | 2 | 2 | 2 |
| AC output parameters (On-Grid) | |||
| Maximum output apparent power(KW) | 8800 | 11000 | 13200 |
| Rated output voltage (V) | 400 | ||
| Rated output frequency (Hz) | 50/60Hz | ||
| Max output current (A) | 13.3 | 16.7 | 20 |
| Output power factor | ~1(-0.8 leading ~ +0.8 lagging) | ||
| AC output parameters (Off-Grid) | |||
| Maximum output apparent power(KW) | 8000 | 10000 | 12000 |
| Rated output voltage (V) | 16000,15sec | 20000,15sec | 24000,15sec |
| Rated output frequency (Hz) | 380/400 | ||
| Max output current (A) | 50/60 | ||
| Output power factor | 13.3 | 16.7 | 20 |
| Efficiency | |||
| Max efficiency (PV) | 98% | ||
| Max efficiency (cell) | 94.5% | ||
| Europe efficiency | 97% | ||
| Protection | |||
| PV input reverse polarity protection | Yes | ||
| PV insulation resistance detection | Yes | ||
| Residual curent detection | Yes | ||
| Output over current protection | Yes | ||
| Output short circuit protection | Yes | ||
| Output over voltage protection | Yes | ||
| Basic data | |||
| Operation temperature (°C) | ―25~60 | ||
| Storage temperature (°C) | ―30~65 | ||
| Relative humidity | 0~95% | ||
| Working altitude (m) | ≤4000 | ||
| Cooling | Air cooling | ||
| Noise (db) | <55 | ||
| Weight (kg) | 38 | ||
| Size (width x height x depth)(mm) | 475*683*256 | ||
| Protection class | IP66 | ||
| Topology | HF isolation (Battery side) | ||
