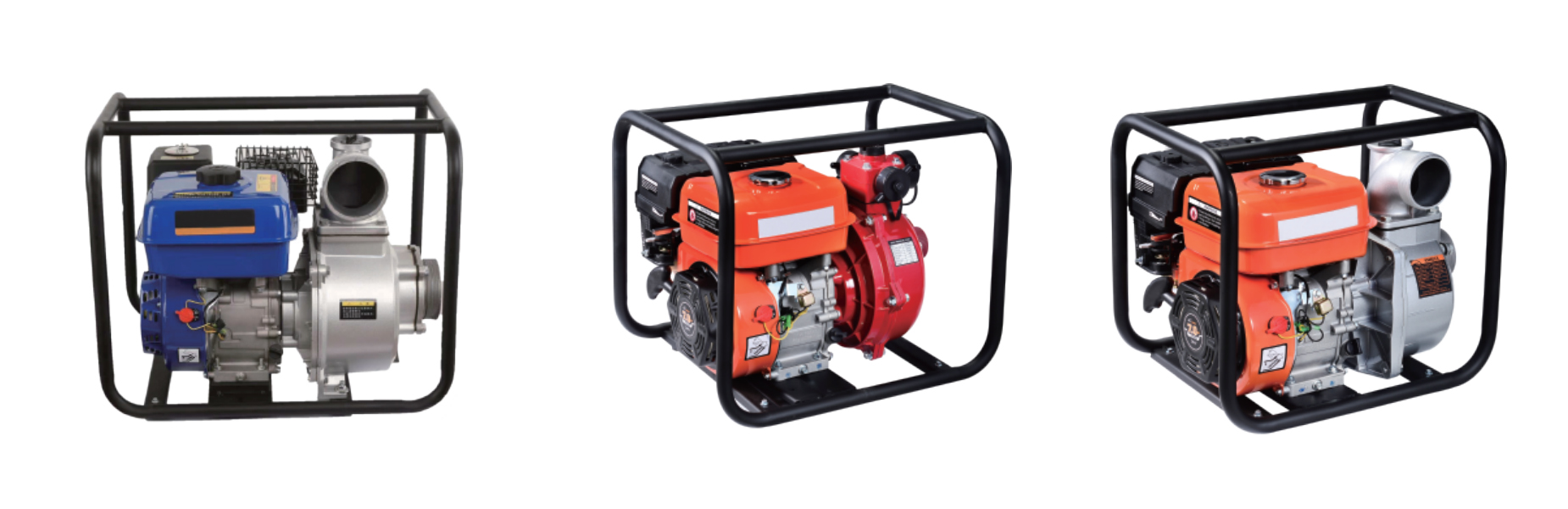

Easy and fast starting, smooth operation, and low vibrationAdvanced design combustion chamber provides exceptional fuel efficiency and consistent power, stable, durable, and reliable
Heavy duty frame, unique design of anti-vibration, and low running temperature prolong the water pump Livestrong and light aluminum alloy pump body [Aluminum] /Strong cast-iron pump with high lift flron]High quality ceramic mechanical sealing
Products widely used in the plains, hills, mountain crops, orchard irrigation. construction plant, water pumping for mines, and municipal drainage.
| Model No. | HN50CX | HN80CX | HN100CX | HN100CX | HN150CX | |
|---|---|---|---|---|---|---|
| Engine | Model | HN170F | HN170F | HN170FP | HN177F | HN190F |
| Type | Single cylinder,4-stroke,air-cooled | |||||
| Bore x Stroke | 70x55mm | 70x55mm | 70x58mm | 77×58mm | 90x66mm | |
| Displacement | 212cm³ | 212cm³ | 223cm³ | 270cm³ | 420cm³ | |
| Max.output power | 7.5/3600Hp/rpm | 7.5/3600 Hp/rpm | 8/3600 Hp/rpm | 9.0/3600 Hp/rpm | 15.0/3600 Hp/rpm | |
| gnition system | TCL | |||||
| Starting system | Recoil/Electric | |||||
| Fuel tank capacity | 3.6 liters | 3.6liters | 6 liters | 6.5liters | 7.5 liters | |
| Continuous operating time | 5 hours | 5 hours | 5 hours | 5 hours | 6 hours | |
| Oil capacity | 0.6 liters | 0.6 liters | 0.6 liters | 0.6 liters | 1.1 liters | |
| Pump | Dia.of inlet/outlet | 2” | 3” | 4” | 4” | 6” |
| Max.lift | 28m | 26m | 24m | 26m | 24m | |
| Suction | 8m | 8m | 8m | 8m | 8m | |
| Flux | 30m/h | 60m'/h | 85m'/h | 90m/h | 180m/h | |
| Packing | N.W. | 23Kgs | 26Kgs | 30Kgs | 44Kgs | 70Kgs |
| G.W | 24Kgs | 27Kgs | 32Kgs | 46Kgs | 72Kgs | |
| Carton size | 48x39x42cm | 57x45x47cm | 58x43.5x51cm | 64x48x59cm | 73.5x51x67cm | |
| Container Loading | 20 | 360pcs | 208pcs | 180pcs | 126pcs | 180pcs |
| 40 HQ | 864pcs | 520pcs | 500pcs | 336pcs | 455pcs | |
| Model No. | HN40HP | HN50HP | HN80SP | |
|---|---|---|---|---|
| Engine | Mode | HN170F | ||
| Type | Single cylinder,4-stroke,air-cooled | |||
| Bore x Stroke | 70×55mm | |||
| Displacement | 212cm³ | |||
| Max.output power | 7.5/3600 Hp/rpm | |||
| gnition system | TCL | |||
| Starting system | Recoil/Electric | |||
| Fuel tank capacity | 3.6 liters | 3.6liters | 3.6 liters | |
| Continuous operating time | 5 hours | 5 hours | 5 hours | |
| Oil capacity | 0.6 liters | 0.6 liters | 0.6 liters | |
| Pump | Dia.of inlet/outlet | 1.5” | 2” | 3” |
| Max,lift | 60m | 65m | 26m | |
| Suction | 8m | 8m | 8m | |
| Flux | 20m'/h | 30m'/h | 60m/h | |
| Packing | N.W | 25Kgs | 26Kgs | 37Kgs |
| G.W. | 26Kgs | 27Kgs | 38Kgs | |
| Carton size | 56x45x47cm | 56x45x47cm | 56x45x45cm | |
| Container Loading | 20 | 208pcs | 208pcs | 260pcs |
| 40 HQ | 520pcs | 520pcs | 520pcs | |
