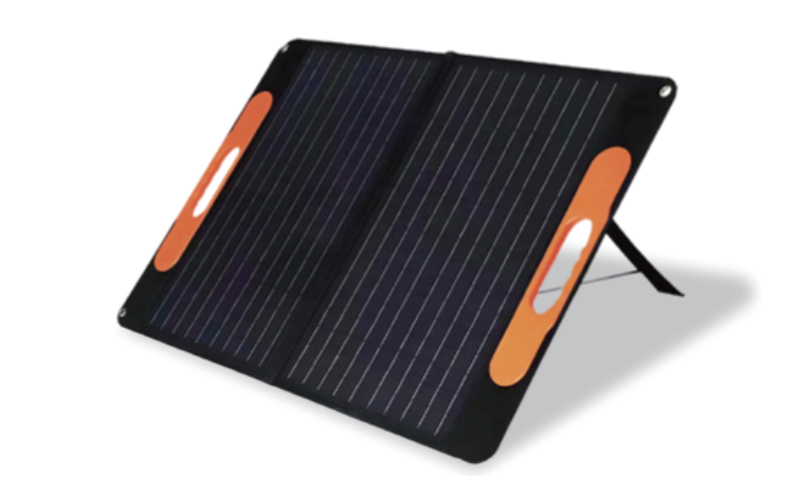

Folding Photovoltaic Module
Composite materials: fiber materials
Photovoltaic ribbon: 1.0 * 0.12mm Braided copper ribbon: 3 *30mm
Solar cells: 0.18mm,182-10BB single crystal solar cells
EVA: 0.45mm
ETFE: 0.02mm, smooth surface
Sandwich fabric: 0.3mm
Back fabric: 0.4mm
Handle shell: built-in output USB, Type-C, DC interface * can be customized according to customer needs for output interface
The bottom plate inside the bracket: 1.6 mm
Elastic band: length 350mm+10mm, wrapped with nylon fabric at both ends
| Component mode | JZK-TYL30W | JZK-TYL60W | JZK-TYL100W | JZK-TYL120W | JZK-TYL200W | JZK-TYL240W |
|---|---|---|---|---|---|---|
| Maximum power (Pmax) | 30.0W | 60.0W | 100.0W | 120.0W | 200.0W | 240.0W |
| Open drcult voltage (Voc) | 21V | 24.5V | 24.48V | 24.48V | 24.48V | 24.48V |
| Maximum working voltage(Vmp) | 19.5V | 19.5V | 19.5V | 19.5V | 19.5V | 19.5V |
| Maximum working current (lmp) | 1,67A | 3.3A | 5.16A | 6.18A | 10.3A | 12.35A |
| Short circuit current (LSC) | 1.83A | 4.5A | 5.56A | 6.67A | 11.32A | 13.35A |
| Expand size | 440*400mm | 969*400mm | 1130*600mm | 1340*600mm | 2270*600mm | 2720*600mm |
| Finished product weight | 1.45±0.10kg | 2.7±0.10kg | 2.9±0.10kg | 2.9±0.10kg | 5.4±0,10kg | 6.5±0.10kg |
