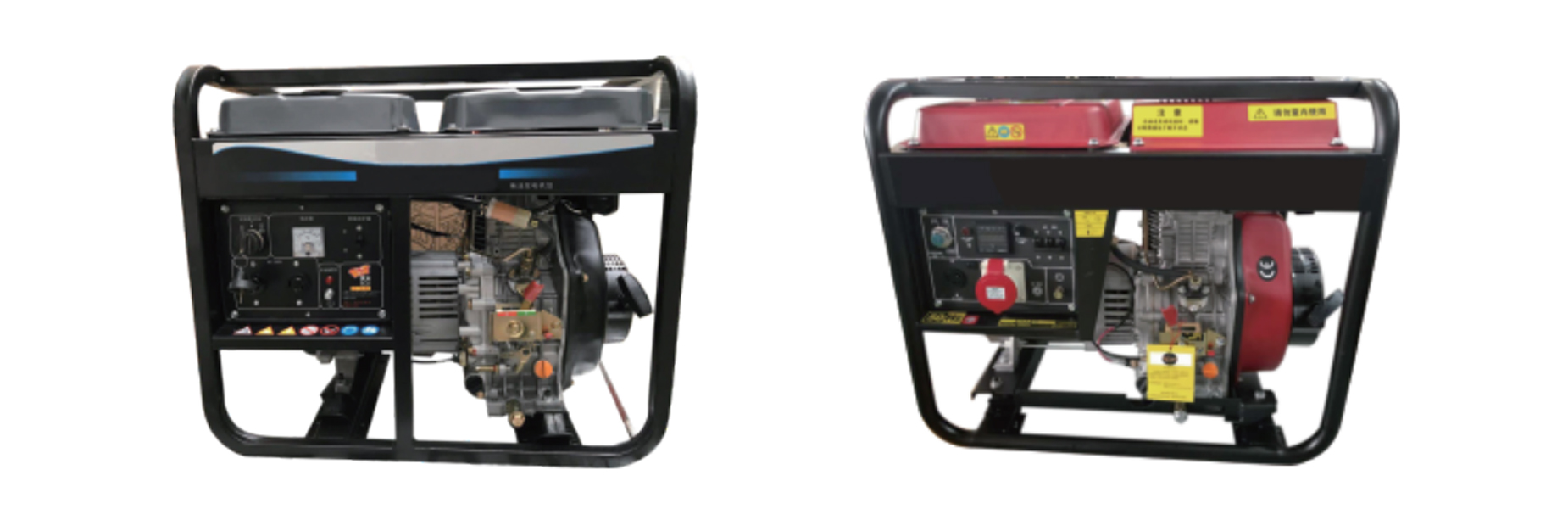

Strong power, all ring-power diesel generators are equipped with a strong self-developed four-stroke engine automatic pressure-reducing mechanism to ensure fast start.
Low noise, efficient combustion system to ensure complete combustion, effectively reduce the noise of the engine. In addition, the noise of the unit is greatly reduced by the double-layer noise reduction structure of the integrated shell and the inner lining of the silent unit, and the large-scale attenuator device.
The low oil pressure alarm device will automatically shut down the motor set when the oil pressure drops to the safety warning line, and can not start normally until the oil is replenished, so as to avoid damage to the unit.
The new automatic voltage regulator (AVR)can reduce the voltage fluctuation to a lower limit and ensure a more stable unit output.
Overload protection capacity: when the unit is over 110%overload, the unit will automatically protect the unit from overload damage.(optional)
All control units are centralized on the intelligent control panel, and users can know the real-time operation conditions of the unit from the display on the panel, such as output voltage, output current, etc.At the same time, the intelligent panel can also display the failure of the unit, so that users have no worries. (optional）
Humanized design and appearance improvement of the Huanneng power generator set to inject more humanized design ideas. Most models are equipped with casters, which is convenient for unit movement.
| Mode | HN3500X/E | HN4500X/E | HN6500X/F | HN7500X/E | HN8500X/E | HN9500X/E |
|---|---|---|---|---|---|---|
| Rated Frequency | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 |
| Rated Output | 1.7 2 | 2.8 3.3 | 4.5 5 | 5 5.5 | 6 7 | 7 8 |
| Maximun Output Power | 22.2 | 3.2 2.8 | 5 5.5 | 5 6 | 6.5 7.5 | 7.5 8.5 |
| The Rated Voltage | 220/380V | 220/380V | 220/380V | 220/380V | 220/380V | 220/380V |
| Rated Currentel | 14.8/7.416.7/8.3 | 24.3/12.227.5/13.8 | 39.1/19.641.7/20.8 | 43/21.746/22.9 | 52/2654/27 | 60/3066.6/33.3 |
| Rated Speed | 3000 3600 | 3000 3600 | 3000 3600 | 3000 3600 | 3000 3600 | 3000 3600 |
| The Power Factor | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Engine Model | HN170FG | HN178FG | HN186FAG | HN188FAG | HN192FAG | HN195FAG |
| Cylinder Structure Type | Vertical single cylinder,four stroke,air-cooled,direct injection | |||||
| The cylinder diameter X Trip | 70x55 | 78x62 | 86x72 | 88x72 | 92x75 | 95x75 |
| The Total Displacement | 211 | 296 | 418 | 456 | 499 | 532 |
| Compression Ratio | 20:1 | 20:1 | 19:1 | 19:1 | 19:1 | 19:1 |
| Rated Power | 2.5 2.8 | 3.68 4 | 5.7 6.3 | 6.6 7.5 | 7.5 8.2 | 10.2 11.2 |
| Lubricating Oil Type | Above CD level or SAE 10W-30,15aw-40 | |||||
| Lubricating Oil Capacity | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 |
| Fuel Type | Diesel:0×3(summer)-10×3(winter)-35×3(severe cold) | |||||
| Unit fuel Consumption Rate | ≤370 | ≤370 | ≤360 | ≤360 | ≤360 | ≤360 |
| Noise 7m | 77 | 77 | 77 | 77 | 77 | 77 |
| Unit fuel Tank Capacity | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Unit Dimension | 640x480x530 | 655x480x530 | 720x492x655 | 720x492x655 | 740x515x640 | 740x515x640 |
| The Unit Net Weight | X:53 E:60 | X:65 E:70 | X:95 E:100 | X3:95 E3:100 | X:100 E:106 | X:100 E:106 |
