CNC Machine Tool

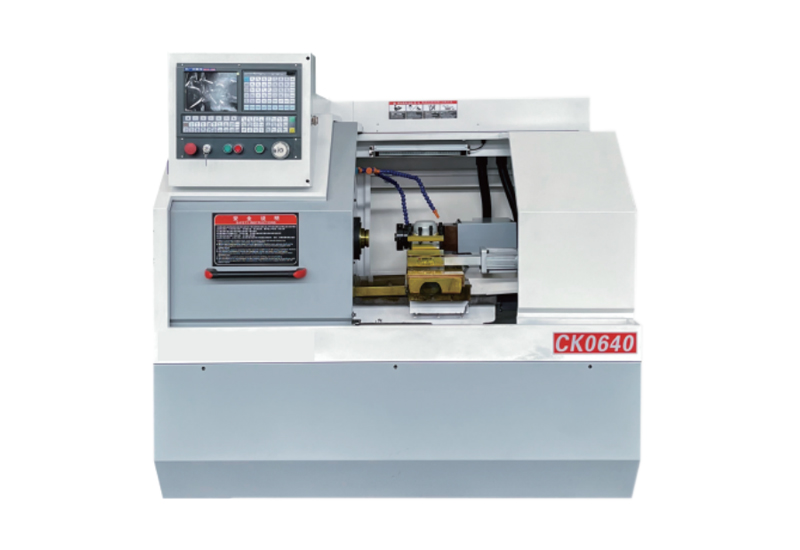

Flat bed CNC lathe / CK0640

This machine is widely used in electrical appliances, the instrumentation industry, automobile and motorcycle accessories, fastener bearings, photographic equipment, film machinery, hardware, various watches, glasses, cultural and educational supplies, motors, valves, gas pipes, and other high-precision complex parts Processing and manufacturing is the most ideal and efficient equipment in the hardware machinery processing industry.

Variable frequency stepless speed regulation
With servo system
Four-station electric knife holder
Standard configuration: dual-use collet and chuck
Choose configuration: hydraulic chuck, row tool holder

SPECIFICATIONS	Unit	CK0640	CK6125	CK6130	CK6132
Maximum turning diameter on the bed	mm	φ200	φ250	φ300	φ320
Maximum swivel diameter on the carriage	mm	φ100	φ125	φ130	φ140
Maximum processing length	mm	200	200	400	400
Max stroke X/Z	mm	200/240	220/250	280/400	300/400
Spindle end form		A2-5	A2-5	A2-5	A2-5
Spindle through hole diameter	mm	φ48	φ48	φ48	φ48
Inner diameter of the main shaft drawing tube	mm	φ40	φ40	φ40	φ40
Spindle maximum speed	rpm	2200	2200	2200	2200
Chuck size		160	160	160	160
Spindle motor power	kw	3	3	4	4
Repeated positioning accuracy (X/Z)	mm	±0.005	±0.005	±0.005	±0.005
Feed motor torque (X/Z)		X:4 Z:4	X:4 Z:4	X:4 Z:4	X:4 Z:4
X/Z rapid traverse speed		X:6 Z:8	X:6 Z:8	X:6 Z:8	X:6 Z:8
Tailstock sleeve diameter	mm	φ52(optional)	φ52	φ52	φ52
Tailstock sleeve stroke	mm	90(optional)	90	90	90
Taistock sleeve taper	Mohs	MT4(optional)	MT4	MT4	MT4
Tool holder form		4-station electric tool holder	4-station electric tool holder	4-station electric tool holder	4-station electric tool holder
Tool dimensions		16x16	16x16	16x16	16x16
Rail form		Shuangshan	Shuangshan	Shuangshan	Shuangshan
Total Power Capacity		@	8	7	7
Dimensicns	mm	1500x1000x1600	1520x1100x1650	1600x1100x1650	1600x1100x1650
Machine Weight	kg	800	850	950	980

Flat bed CNC lathe / CK6136/CK6140/CK6150/CK6160

The machine tool is automatically controlled by the CNC system to perform various kinds of tuning of inner holes, outer circles, conical surfaces, arc surfaces, and threads. Simple programming, high precision, and other advantages.

Four-station electric knife holder
Frequency stepless speed regulation
Standard configuration: manual chuck
Choose configuration; spring collet, hydraulic chuck, Automatic feeding device, row knife holder

SPECIFICATIONS	Unit	CK6136	CK6140	CK6150	CK6160
Maximum turning diameter on the bed	mm	φ360	φ400	φ500	φ600
Maximum swivel diameter on the carriage	mm	φ180	φ200	φ275	φ380
Maximum processing length	mm	750/1000/1500	750/1000/1500	500/1000/1500/2000/3000	750/1000/1500/2000/3000
Max stroke X/Z	mm	X:240 Z:750/1000/1500	X:240 Z:750/1000/1500	X:300 Z:750/1000/1500/2000	300/400
Main drive form		None	None	three-speed transmission	three-speed transmission
Spindle speed series		Promise	Promise	Promise	Promise
Spindle speed range		50-2000	50-2000	50-500/300-1100/600-1800	50-500/300-1100/600-1800
Spindle end form		A2-6	A2-6	A2-8	A2-8
Spindle through hole diameter	mm	52	52	82/105	82/105/130
Spindle hole front taper		MT5	MT5	MT6	MT6
Spindle motor power	kw	5.5	5.5	7.5	7.5/11
Chuck size		200	200	250	250/315
Ball screw specifications		2006 / 4008	2006 / 4008	2506/4008	2506/4008
Feed motor torque (X/Z)		4/6	4/6	5.5/7.5	5.5/7.5
Fast moving speed (X/Z)		X:6 Z:8	X:6 Z:8	X:6 Z:8	X:6 Z:8
Repeated positioning accuracy (X/Z)	mm	±0.005	±0.005	±0.005	±0.005
Workpiece processing accuracy		IT6-IT7	IT6-IT7	IT6-IT7	IT6-IT7
Workpiece surface roughness		Ral.6	Ral.6	Ral.6	Ral.6
Tailstock sleeve diameter	mm	@	@	@	65
Tailstock sleeve stroke	mm	@	@	130	130
Taistock sleeve taper	Mohs	MT4	MT4	MT5	MT5
Tool holder form		4-station electric tool holder	4-station electric tool holder	4-station electric tool holder	4-station electric tool holder
Tool dimensions		20x20	20x20	25x25	25x25
Total Power Capacity		@	@	12	12
Dimensicns	mm	2150/2400/2900x1500x1650	2500x1500x1650	2700x1500x1690	2950x3160x1820
Machine Weight	kg	1800	1800	2500	3150

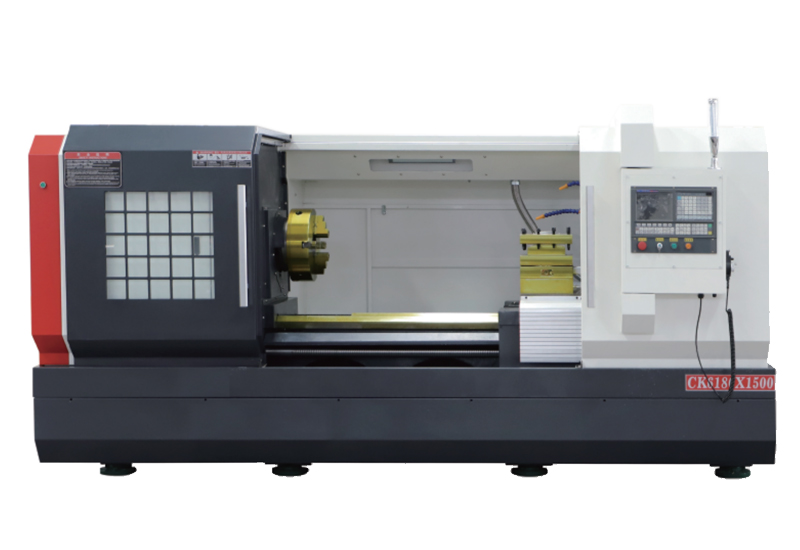

Flat bed CNC lathe / CK6163/CK6180/CK61100

The machine tool can automatically complete the processing of internal and external cylindrical surfaces, conical surfaces, arc surfaces, end surfaces, etc., and can also realize the turning processing of single and multi-head threads in public, English and various other forms.

High base strength, widened carriage, suitable for strong turning
Four-station electric knife holder
Four-speed speed change of main shaft,stepless frequency conversion speed regulation
Standard configuration: manual chuck
Select configuration: hydraulic chuck

SPECIFICATIONS	Unit	CK6163	CK6180	CK61100
Maximum turning diameter on the bed	mm	φ630	φ800	φ1000
Maximum turning diameter on the pallet	mm	φ330	φ460	φ680
Maximum processing length	mm	1000/1500/2000/3000	1000/1500/2000/3000	1500/2000/3000
Main drive form		Four -gear	Four -gear	Manual eight gears
Spindle speed series		Promise within the file	Promise within the file	Promise within the file
Spindle speed	r/min	30-84/53-150/125-350/300-835	30-84/53-150/125-350/300-835	30-84/53-150/125-350/300-835
Spindle head form		C11	A2-6	A2-11
Spindle hole front taper		Metric120 1:20	Metric120 1:20	Metric120 1:20
Spindle through hole diameter	mm	105	105	130
Main motor power	kw	11	11	15
X/Y axis positioning accuracy	mm	0.025/0.03	0.025/0.03	0.025/0.03
X/Y -axis Repeated Positioning accuracy	mm	0.01/0.015	0.01/0.015	0.01/0.015
Workpiece processing accuracy		IT6-IT7	IT6-IT7	IT6-IT7
Workpiece surface roughness		Ral.6	Ral.6	Ral.6
X fast moving speed	mm/min	4000	4000	4000
Z fast moving speed	mm/min	6000	6000	6000
Tailstock sleeve diameter	mm	@	@	@
Tailstock sleeve inner hole taper		MT6	MT6	Metric 100
Tailstock sleeve movement	mm	@	@	@
Tool holder form		Electric vertical four-station tool holder	Electric vertical four-station tool holder	Electric 4-station
Ball screw diameter*pitch	mm	X:3205 Z:5010	X:3205 Z:6310	X:4005 Z:6310
Knife size	mm	32/32	32/32	40*40
Dimensicns	mm	3400/3900/4400/540018201780	3500/4000/4500/550019001900	3600/4100/4600/560019502000
Machine Weight	kg	3200/3600/4000/4500	4800/5300/5800/6800	7000/7500/8500

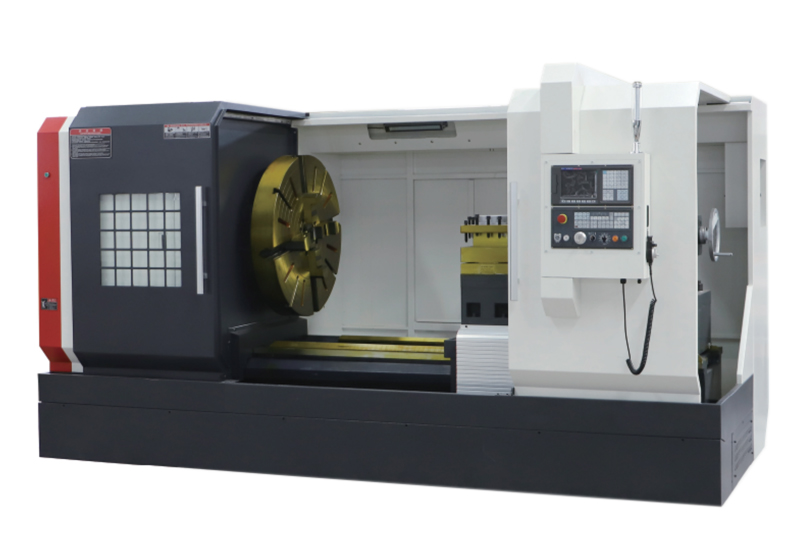

Flat bed CNC lathe / CK61125/CK61140/CK61150

The machine tool is aufomatically controlled by the CNC system to perform various kinds of tuning of inner holes, outer circles, conical surfaces, arc surfaces, and threads. Simple programming, high precision, and other advantages.

Widened high-stability bed
Four-speed speed change of main shaft, stepless frequency conversion speed regulation
Widened carriage
Automatic centralized lubrication
Overall bed

SPECIFICATIONS	Unit	CK61125	CK61140	CK61150
Maximum turning diameter on the bed	mm	φ1250	φ1400	φ1500
Maximum turning diameter on the pallet	mm	φ880	φ1000	φ1100
Maximum processing length	mm	1500/2000/3000	1500/2000/3000	1500/2000/3000
Spindledrive form		Manual eight gears	Eighth gear	Eighth gear
Spindle speed series		Promise within the file	Promise within the file	Promise within the file
Spindle speed	r/min	30-84/53-150/125-350/300-835	30-84/53-150/125-350/300-835	30-84/53-150/125-350/300-835
Spindle head form		A2-11	A2-11	A2-11
Spindle hole front taper		Metric120 1:20	Metric140 1:20	Metric140 1:20
Spindle through hole diameter	mm	130	130	130
Main motor power	kw	15	18/22	18/22
X/Y axis positioning accuracy	mm	0.025/0.03	0.025/0.03	0.025/0.03
X/Y -axis Repeated Positioning accuracy	mm	0.01/0.015	0.01/0.015	0.01/0.015
Workpiece processing accuracy		IT6-IT7	IT6-IT7	IT6-IT7
Workpiece surface roughness		Ral.6	Ral.6	Ral.6
X fast moving speed	mm/min	4000	4000	4000
Z fast moving speed	mm/min	6000	6000	6000
Tailstock sleeve diameter	mm	@	@	@
Tailstock sleeve inner hole taper		Metric 100	Metric 100	Metric 100
Tailstock sleeve movement	mm	@	@	@
Tool holder form		Electric 4-station	Electric 4-station	Electric 4-station
Ball screw diameter*pitch	mm	X:4008 Z:6310	X:3208 Z:6310	X:3205 Z:6310
Tool holder maxiumu stroke X/Z	mm	32/40	32/40	32/40
Dimensicns	mm	3700/4200/470020002200	4250/4750/525023002500	4600/5100/610023002600
Machine Weight	kg	7.5/8.0/9.0	8.0/9.0/10.5	8.3/9.5/11.0

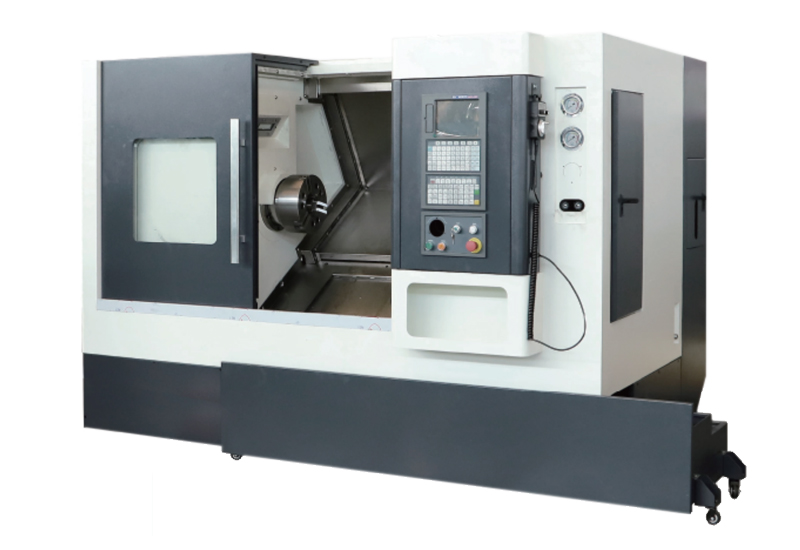

CNC inclined bed lathe / FCK40/FCK50/FCK60

This machine is mainly used for various shaft and disc parts. It can turn various internal and external curved surfaces of threads, arcs, cones, and rotary bodies to meet the speed requirements of high-speed chips for ferrous and non-ferrous metals. It is suitable for high-efficiency, high-volume, high-precision machining of rotating parts in the automotive, motorcycle, electronics, aerospace, mill-ta and other industries. Processing accuracy can reach 7 levels.

45-degree inclined bed
High-precision Taiwan linear guide
For large and convenient chip evacuation, choose between the right chip evacuation and rear chip evacuation
Spindle unit is divided into heavy cutting types and high-speed
Heavy-cut spindle unit is suitable for the processing of bearings and gears

MAIN TECHNICAL DATA	UNIT	FCK40	FCK50
Maximum rotation diameter	mm	φ400	φ560
Tool holder rotation diameter	mm	φ120	φ440
Maximum machining diameter	mm	400	φ500
Maximum processing length	mm		550
Maximum bar diameter	mm	φ40	φ42
Workpiece damping method	N/A	Spring collet	10 inch hydraulic chuck
Spindle speed range	rpm	Optional 100-3000 (ordinary spindle unit)	35-5000
		100-4000 (precision spindle unit)
Spindle end specification	N/A	A2-5	A2-5
Spindle through hole diameter	mm		φ560
X axis rapid traverse speed	m/min	24m(3210)	24m(4010)-THK
Z axis rapid movement speed	m/min	24m(3210)	24m(4010)-THK
X axis movement	mm	800	280
Z axis movement amount	mm	420	550
X/Y -axis Repeated Positioning accuracy	mm	0.003	0.003
Spindle bearings	N/A		NN3018KMP5(CSC) Great Wall
			NN3018KMP5(CSC) Great Wall
			BTM100B/P5DB (CSC) Great Wall
Screw bearing	N/A		2652
Turret form	N/A	row of knives	8-station or 12-station 80 servo turret
			12 stations 80 powered tool turret
			12-station Y-axis powered tool turret
External turning tool	mm		φ25
Maximum boring tool diameter	mm		φ32 (servo turret)/φ40 (power turret)
Knife specifications	mm	20
Maximum number of knives	pcs	9 (Can install 63 turrets)
Maximum travel of tailstock	mm		450
Tailstock cylinder diameter	mm		φ500
Tailstock taper hole	N/A		Mosque No. 5
Tailstock operating mode	N/A		Oil cylinder screw 3210
Chip conveyor	N/A		Side row or rear row
Servo main motor	kw		5.5/7.5/11
Machine size	mm	210014501850	The actual measurement shall prevail
Height from bed foot to sprinde	mm	990
Machine weight	kg	about 1500	about 3500

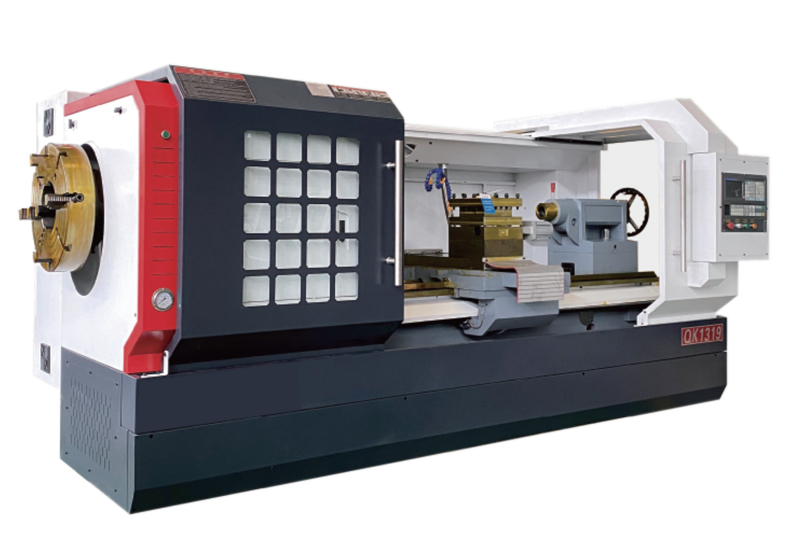

CNC pipe thread lathe QK13

QK13 series pipe thread lathe mainly undertakes the special machine tool for pipe thread turning processing. In addition, it can also undertake the turning outer circle, boring, plane, and other work of an ordinary lathe. It is used in the processing and repair of drill pipes in petroleum, metallurgy, chemical, hydroelectric geology, and other departments., drill collar, kelly, casing, etc.

SPECIFICATIONS	Unit	QK1313	QK1319	QK1322	QK1327	QK1332
Maximum turning diameter on the bed	mm	800	800	800	1000	1000
Maximum turning diameter on the tool holder	mm	440	440	440	610	610
Maximum tip disrance	mm	1500/2000/3000	1500/2000/3000	1500/2000/3000	1500/2000/3000	1500/2000/3000
Bed width	mm	600	600	600	755	755
Spindle aperture	mm	135	195	225	275	325
Main motor power	kw	11	11	11	15	15
Spindle speed	r/min	30-835	30-835	30-835	10-360	20-300
Bed saddle fast moving speed	mm/min	4000	4000	4000	3740	3740
Skateboard fast moving speed	m/min	2300	2300	2300	1870	1870
Skateboard maximum lateral travel	mm	390	390	390	520	630
Tool hodel maximum stroke	mm	200	200	200	300	300
Sleeve stroke	mm	205	205	205	300	300
Sleeve diameter / taper	mm	MT6	MT6	MT6	φ155 / Metric 100	φ155 / Metric 100
Chuck		φ380 Three jaw chuck	φ500 four jaw chuck	φ500 four jaw chuck	φ630 four jaw chuck	φ630 four jaw chuck
Machine tool dimensions	mm	2750/325015501700	3200/515918001800	3200/515918001800	4800/630021001800	4800/630021001800
Weight	kg	4.5/5.2/6.0	4.5/5.2/6.0	4.5/5.2/6.0	7.5/8/9	7.5/8/9

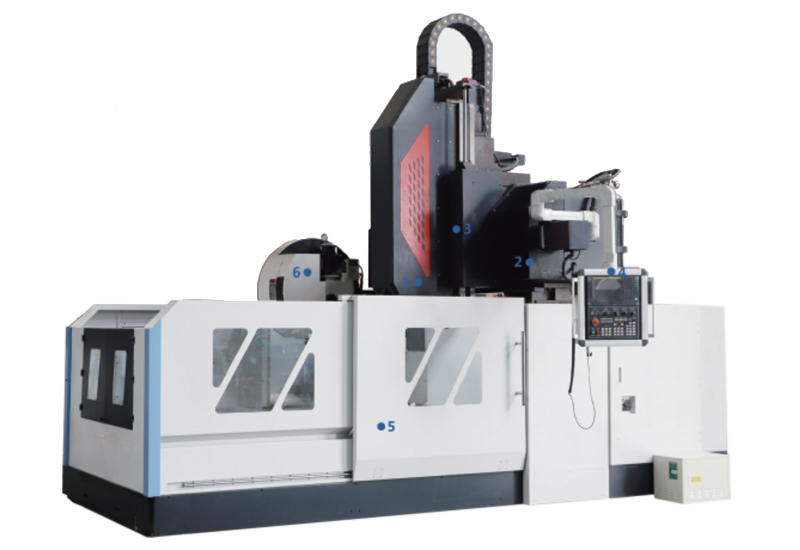

Gantry machining center / GMC2013/3013

The gantry machining center is mainly used for processing large parts such as plates, discos, housing parts, and molds with high precision, many processes, and complicated shapes.
GMC series gantry machining center adopts fixed bearn double-column gantry frame structure, and cross layout, and the machine tool is stable and reliable. The headstock adopts a nitrogen cylinder balancing mechanism to ensure the smoothness of the headstock moving up and down along the sliding saddle. The bed, workbench, column, beam, sliding saddle, headstock, and other large parts are made of high-strength cast iron material, which is made of resin sand. The two aging treatments eliminate stress and effectively inhibit the deformation and vibration of the machine tool caused by cutting force.

Technical Parameters		Unit	GMC2013/3013	GMC2016/3016/4016	GMC2021/3021/4021
Processing range	X-axis travel	mm	2000/3000	2000/3000/4000	2000/3000/4000
	Y axis travel	mm	1400	1600	2100
	Z-axis travel	mm	800	800	800
	Gantry width	mm	1400	1660	2150
	Distance from spindle end face to worktable	mm	60-860	200-1000	200-1200
Working desk	Workbench size (length × width)	mm	2000/3000*1000	2000/3000/4000*1300	2000/3000/4000*1800
	Maximum weight of workbench	T	4/5	5/6/7	5/6/7
	T-shaped slot (number of slots - slot width × spacing)		7-22*150	7-22*170	7-22*180
Spindle	Spindle revolutions	rpm	6000	6000	6000
	Spindle type		Belt BT50	Belt BT50	Belt BT50
	X/Y/Z axis guide rail form		RGW/H 55 Wire gauge	RGW/H 55 Wire gauge	RGW/H 55 Wire gauge
	XYZ fast movement speed	m/min	12/12/10	12/12/10	12/12/10
	Cutting feed rate	mm/min	6000	5000	6000
Automatic tool changing system (optional)	ATC form		Disc type/chain type	Disc type/chain type	Disc type/chain type
	Tool magazine capacity	pcs	24/40	24/40	24/40
	Maximum tool diameter (full tool/no adjacent tool)	mm	∅112/ ∅200	∅112/ ∅200	∅112/ ∅200
	Maximum tool length	mm	300	300	300
	Maximum tool weight	kg	18	18	18
	Pull the bolt		P50T-1 (45⁰)	P50T-1 (45⁰)	P50T-1 (45⁰)
	Tool changing time (tool to tool)	sec	2.5	2.5	2.5
Machine accuracy	XYZ positioning accuracy	mm	0.02/0.02/0.015mm	0.02/0.02/0.015mm	0.02/0.02/0.015mm
	XYZ repeat positioning accuracy	mm	0.15/0.015/0.01mm	0.15/0.015/0.01mm	0.15/0.015/0.01mm
	Machine weight (approx.)	T	18/21	20/24/28	24/28/32

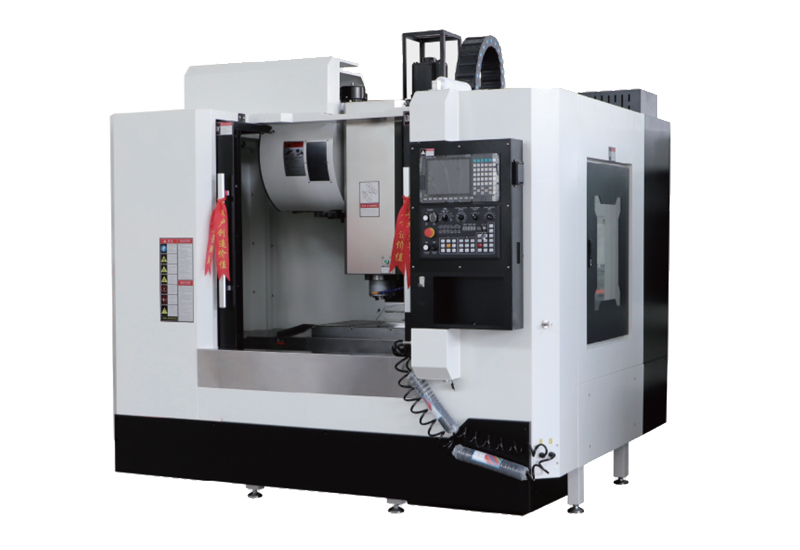

Vertical Machining Center / VMC1060/1160/1270/1370/1580/1690/1890/20100

The main large parts of the machine: the base, work table, column, bed saddle, and headstock are made of high-quality resin sand, high-strength high-quality iron, complete heat treatment process to eliminate residual stress, and enough reinforcing nibs to ensure the whole The machine has sufficient strength, rigidity and high stability;
Adopting Talwan original heavy-duty linear guide rail, it has strong rigidity and good dynamic precision;
The three-axis transmission adopts Taiwan-made grinding double nut ball screw, which has a compact structure, stable movement, and high precision;
The highly rigid Taiwanese spindle is lubricated with grease to provide constant and reliable lubrication of the spindle bearings;
The base adopts a large water tray structure for casting, which has good waterproof performance.

Project	Unit	VMC1060	VMC1160	VMC1270	VMC1370	VMC1580	VMC1690	VMC1890	VMC20100
X-axis travel	mm	1000	1100	1200	1300	1500	1600	1800	2000
Y axis travel	mm	600	600	700	700	800	900	900	1000
Z-axis travel	mm	600	600	600	700	700	700	800	800
working desk size	mm	1200*600	1200*600	1300*700	1360*700	1700*800	1800*900	2000*900	2000*1000
Maximum load-bearing capacity of workbench	kg	800	1000	1200	1400	1500	1500	1600	1800
T-shaped slot (number of slots × width × spacing)	mm	518120	518125	518125	522140	522135	522165	522165	522185
Spindle taper hole		BT40	BT40	BT50/BT40	BT50/BT40	BT50	BT50	BT50	BT50
Main pumping power	kw	11/15	11/15	11/15	15/185	15/185	18.5/22	22/26	22/26
Spindle maximum speed	rpm	8000	8000	8000	8000	6000/8000	6000/8000	6000/8000	6000/8000
Fast movement (X/Y)	mm/min	36/36/24	36/36/24	24/24/12	24/24/12	15000	15000	15000	15000
Move quickly (Z)	mm/min	18000	18000	16000	16000	12000	12000	12000	12000
cutting feed	mm/min	1-8000	1-8000	1-5000	1-5000	1-5000	1-5000	1-5000	1-5000
Feed motor	NM	20/20/20	20/20/20	25/25/25	25/25/25	25/32/25	32/40/32	32/40/32	27/30/30
Distance from spindle nose to work surface	mm	130-680	140-740	140-700	160-860	170-800	170-800	160/900	160-900
Distance from spindle center to column guide rail	mm	650	650	780	780	810	950	950	1050
Maximum tool diameter (adjacent/empty tool)	mm	∅78 ∅120	∅78 ∅120	∅112 ∅200	∅112 ∅200	∅112 ∅200	∅112 ∅200	∅112 ∅200	∅112 ∅200
Maximum tool length	mm	300	300	300	300	300	300	300	300
Maximum tool weight	kg	8	8	18	18	18	18	18	18
positioning accuracy	mm	±0.0075	±0.0075	±0.0075	±0.0075	±0.01	±0.01	±0.01	±0.01
Repeatability	mm	±0.005	±0.005	±0.005	±0.005	±0.0075	±0.0075	±0.0075	±0.0075
Machine weight	kg	6900	7000	9500	10000	13000	14000	15000	17000
Dimensions	mm	320024002800	340024802960	340024902960	387031652920	430032003100	450033503200	510038003200	530039003300
