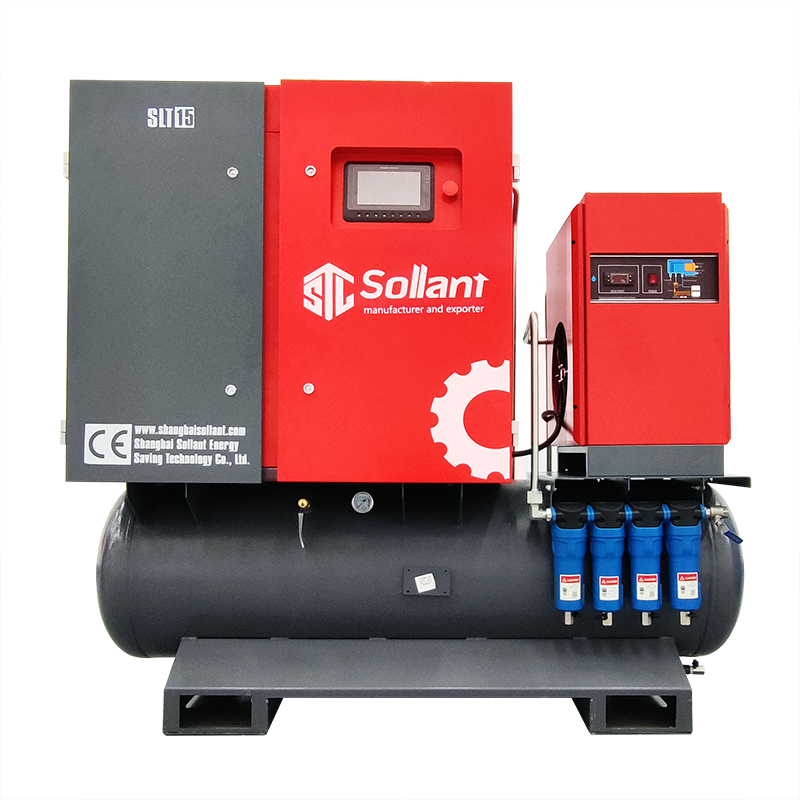

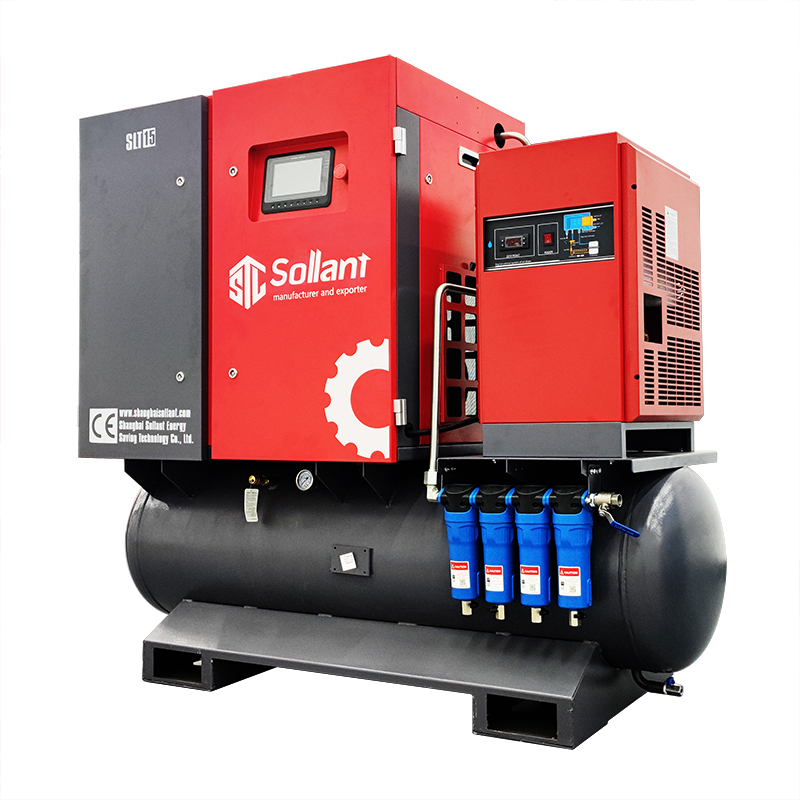

Air Compressor for Laser Cutting Machine
Dullant screw compressor manufacturers are focused on providing energy-saving and efficient industrial screw air compressors to the world. Sollant industrial air compressors include fixed speed and VSD screw air compressors, air compressors for laser cutting, 2-stage screw air compressors, high-pressure and low-pressure air compressors, etc. More than 20 years of industry experience, using technology to save costs, saving more than 20% of costs for global enterprises and factories.
Dullant always adheres to the goal of a win-win situation and continues to develop new energy-saving products to meet the growing needs of users. Focus on industry application characteristics, solve industry application technical difficulties, and better serve segmented industries.

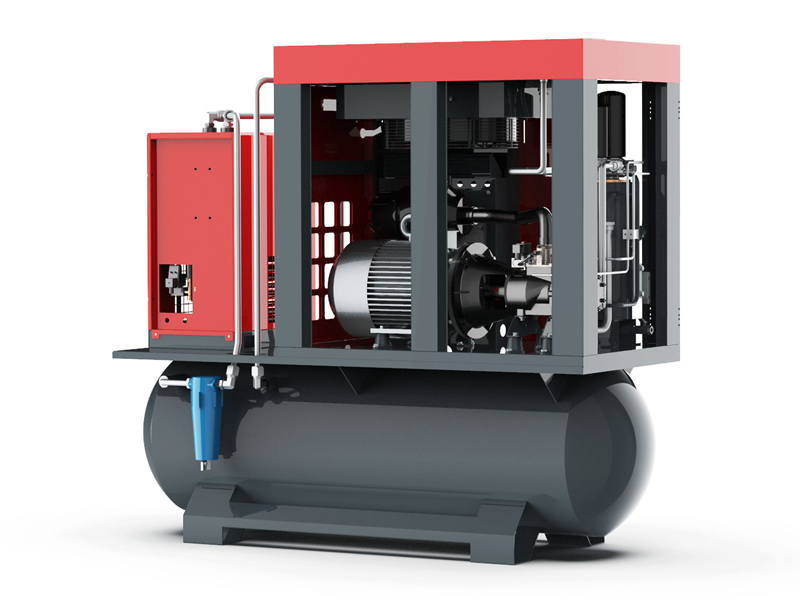

Screw Air Compressor
♦ Motor
Adopt high-efficiency and energy-saving IE4 motor
♦ Air End
New 20CrMrTi (alloy steel) two-stage rotor material, 5:6 tooth rotor profile, higher strength, and better energy efficiency. The new bearing structure, using copper bearings greatly improves the service life of
the machine body
♦ Oil And Gas Tanks
The oil and gas separation tank is designed with an external oil separation core for easy maintenance
♦ Oil Separator
The oil separation core adopts the MAN brand, and the oil and gas separation effect is better

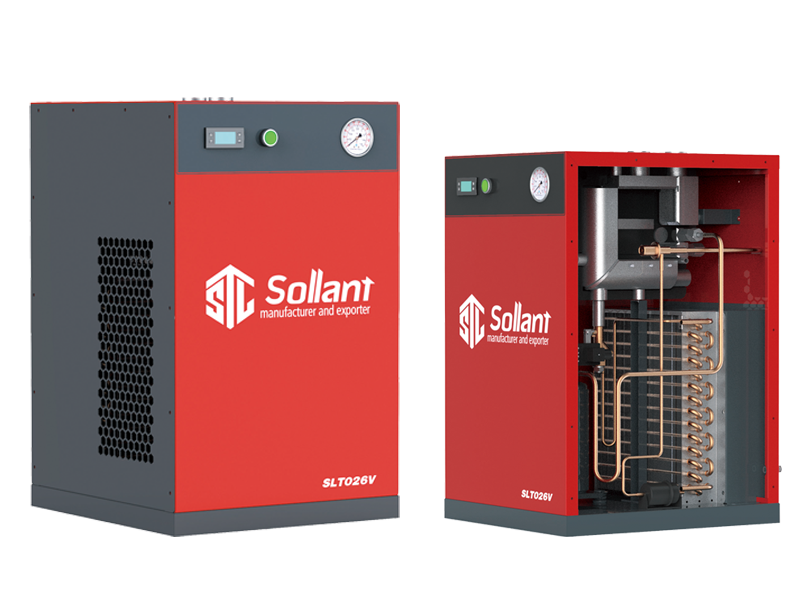

Refrigerated Air Dryers
High-quality compressed air for your equipment and processes
The aluminum plate-fin series of refrigerated dryers ensures dry compressed air, prolongs the service life of your equipment, and ensures excellent production quality. Efficient water removal prevents corrosion in the compressed air network and in the air tools. All in all, it reduces your maintenance costs and improves your overall level of production with complete peace of mind.
♦ Excellent performance
High-efficiency plate-fin heat exchanger
Low relative humidity of outlet air
Professional water removal function
Dew point 2-10°C
♦ Energy saving and carbon reduction
50% reduction in energy consumption
compared to shell and tube dryers
Optimized refrigeration system
Precision Filter
This precision filter has obtained the national patent, is qualified through pressure and precision and various indicators, and strictly implements the compressed air quality standard: ISO8573
This series of products has a unique appearance, realizes the exquisite design of every detail in and clever and convenient parallel way, and under the premise of meeting the laser industry 3.0Mpa pressure requirements, with gain years in compressed air processing and compressed air quality requirements and continuous innovation and technical precipitation, thus has the absolute ability to provide solutions for the vast number of users in the compressor air system industry, to ensure the long-term stable operation of laser cutting, laboratory, medicine, food, electronics, chemical, and other precision filtration

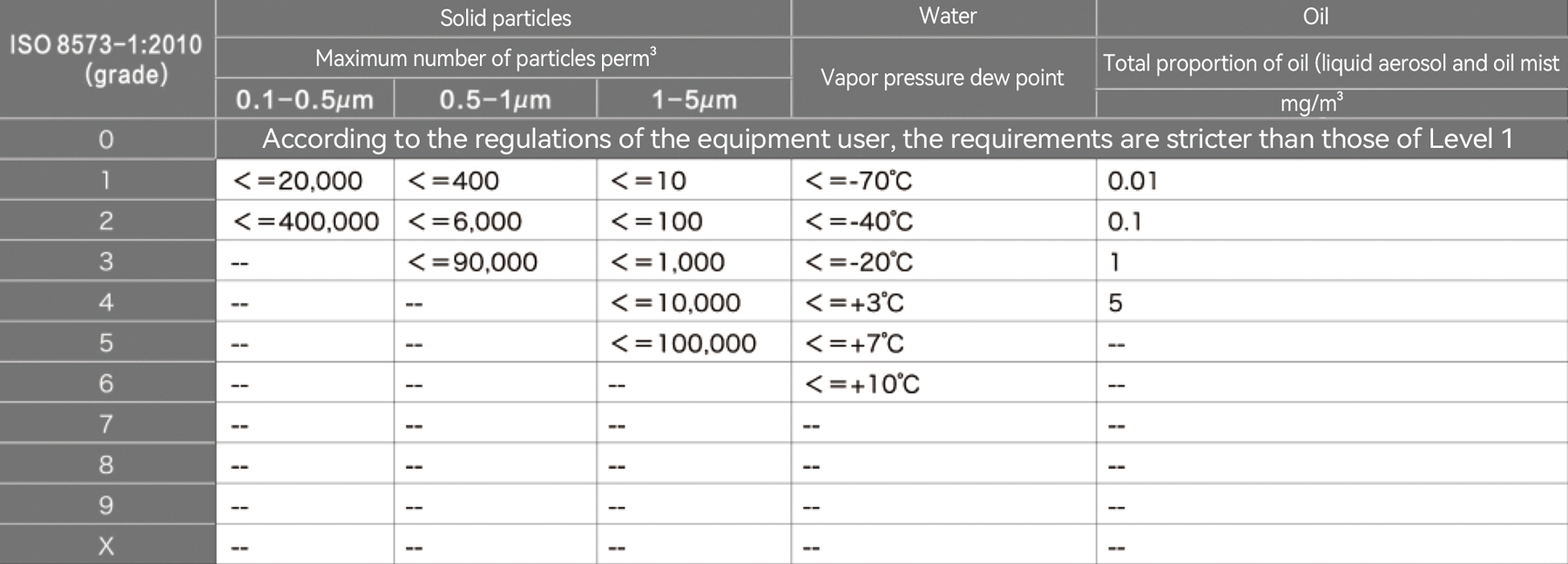

Compliant with ISO 8573 Standard
♦ Residual oil measurement – OlL-Check 400
Continuously and accurately measure the residual oil content in the form of steam from 0.001 mg/m³ to 2.5 mg/m³. Class 1 compressed air quality can be through a low detection limit of 0.001mg/m³ (ISO 8573)
♦ Particle counter PC 400
The high-precision optical particle counter PC 400 can measure particles as low as 0. 1 um in size, so it is suitable for monitoring the quality of compressed air at level 1 (ISO 8573).
♦ Residual humidity – dew point sensor FA 510
FA 510 can measure the pressure dew point up to – 80℃td. At this time, continuous measurement can also ensure that the alarm will be triggered immediately whether the compressed air dryer fails
Technical Parameters
| Model | Power(kw) | Pressure(bar) | Capacity(m³/min) | Weight(Kg) | Dimensions（mm） | |
|---|---|---|---|---|---|---|
| SLTI-7.5V | 7.5 | 8 | 1.1 | 370 | 1550*710*1410 | |
| 7.5 | 10 | 0.7 | 370 | 1550*710*1410 | ||
| SLTI-11V | 11 | 16 | 0.96 | 550 | 1780*740*1570 | |
| 11 | 20 | 0.7 | 550 | 1780*740*1570 | ||
| SLTI-15V | 15 | 16 | 1.46 | 550 | 1780*740*1570 | |
| 15 | 20 | 1.01 | 550 | 1780*740*1570 | ||
| SLTI-22V | 22 | 16 | 2.16 | 900 | 2200*1030*1830 | |
| 22 | 20 | 1.57 | 900 | 2200*1030*1830 |
